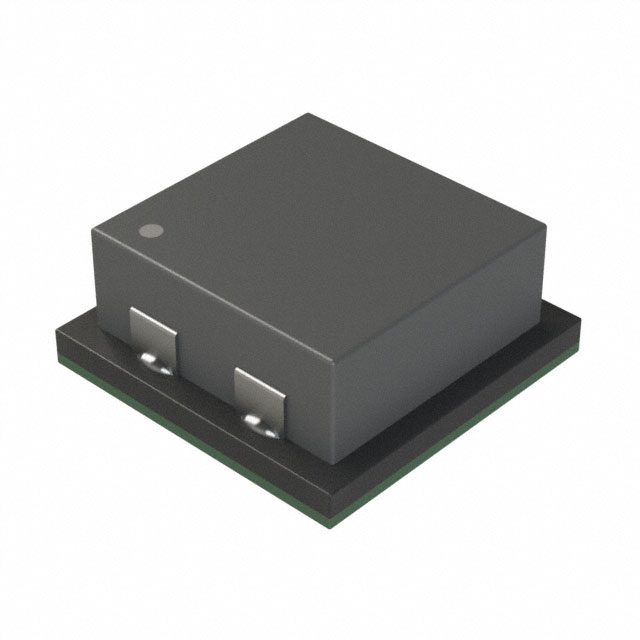

MSN12AD60-RUD

Obsolete

Delta Electronics/Cyntec

DC DC CONVERTER 0.6-1.8V

Search across all available documentation for this part.

Obsolete

Delta Electronics/Cyntec

DC DC CONVERTER 0.6-1.8V

Technical Specifications

Parameters and characteristics for this part

Specification	MSN12AD60-RUD

Applications	ITE (Commercial)
Current - Output (Max) [Max]	60 A
Efficiency	87 %
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	144-BBGA Module
Size / Dimension [x]	16 mm
Size / Dimension [x]	0.63 "
Size / Dimension [y]	0.63 in
Size / Dimension [y]	16 mm
Size / Dimension [z]	0.3 "
Size / Dimension [z]	7.5 mm
Supplier Device Package	144-BGA (16x16)
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	15 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.6 V

Part	Features	Applications	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Supplier Device Package	Type	Mounting Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Efficiency
Delta Electronics/Cyntec MSN12AD60-RUD	OCP OTP OVP SCP UVLO	ITE (Commercial)	1	144-BBGA Module	8 V	144-BGA (16x16)	Non-Isolated PoL Module Digital	Surface Mount	15 V	85 °C	-40 °C	1.8 V	0.6 V	60 A	16 mm	0.63 "	0.63 in	16 mm	0.3 "	7.5 mm	87 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 60A 8V - 15V Input
