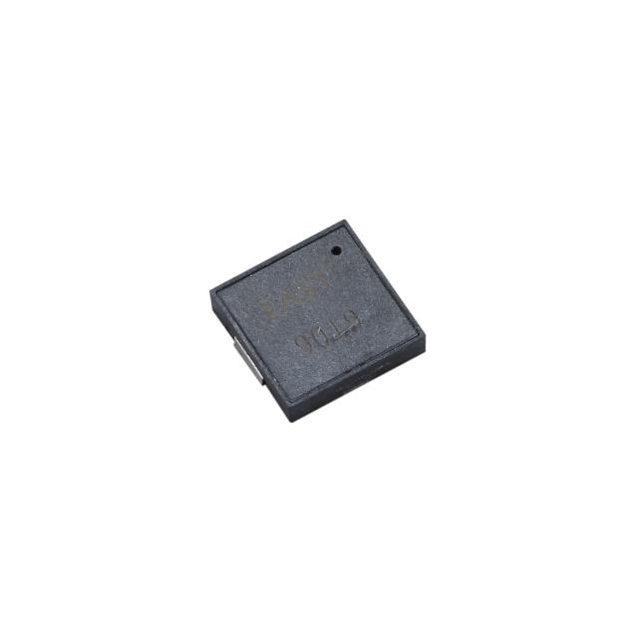

SFM-9019-03A
ActiveEast Electronics
BUZZER 3V 0.354" L X 0.354" W TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFM-9019-03A
ActiveEast Electronics
BUZZER 3V 0.354" L X 0.354" W TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFM-9019-03A |
|---|---|
| Current - Supply | 5 mA |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] [z] | 1.9 mm |
| Height - Seated (Max) [Max] [z] | 0.075 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 9 mm |
| Size / Dimension [x] | 0.354 " |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.354 in |
| Sound Pressure Level (SPL) | 65 dB |
| Termination | PC Pins |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 20 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.98 | |
| 100 | $ 1.30 | |||
| 1000 | $ 1.07 | |||
Description
General part information
SFM-9019 Series
Buzzers 3 V 5mA 4kHz 65dB @ 3V, 10cm Through Hole PC Pins
