OAB22599-22-1B
ActiveOrion Fans

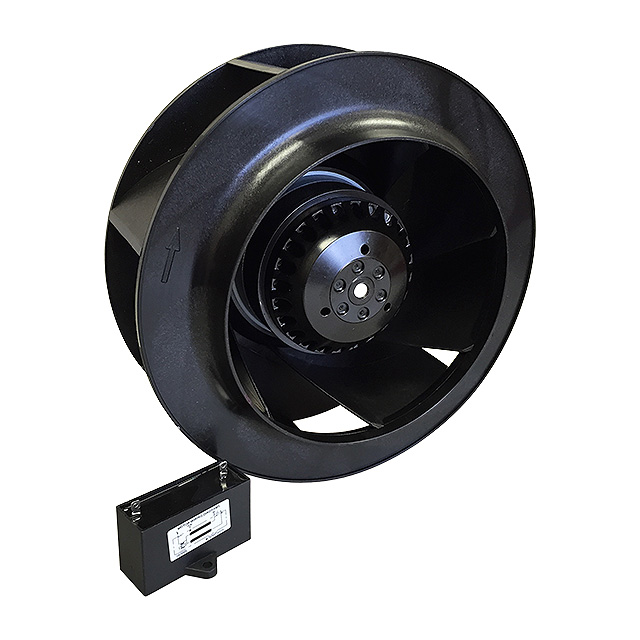

FAN IMP MTRZD 225X99 230V W/CAP
Deep-Dive with AI
Search across all available documentation for this part.
OAB22599-22-1B
ActiveOrion Fans
FAN IMP MTRZD 225X99 230V W/CAP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OAB22599-22-1B |
|---|---|
| Air Flow | 770 CFM |
| Air Flow | 21.56 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.7 A |
| Fan Type | Motorized Impellers |
| Features | Permanent Split Capacitor Motor |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Thermoplastic |
| Material - Frame | Aluminum |
| Noise | 71 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 157 W |
| RPM | 2950 RPM |
| Size / Dimension [diameter] | 225 mm |
| Static Pressure | 647.7 Pa |
| Static Pressure | 2.6 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 5.1 lbs |
| Weight | 2.3 kg |
| Width [y] | 99 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 147.33 | |
| 16 | $ 132.41 | |||
| 32 | $ 130.54 | |||
| 56 | $ 122.15 | |||
Description
General part information
OAB22599 Series
Fan Motorized Impellers 230VAC Round - 225mm Dia Ball 770.0 CFM (21.56m³/min) 4 Wire Leads
