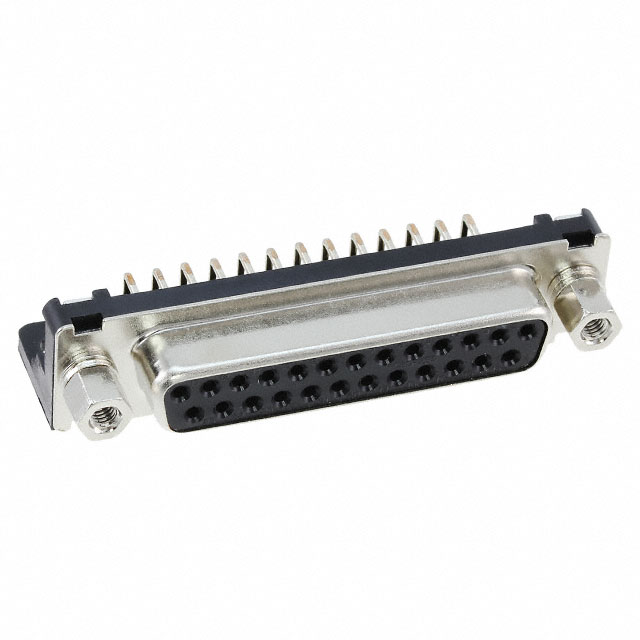

RDBD-25SE-LNA(55)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDBD-25SE-LNA(55)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDBD-25SE-LNA(55) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Mating Side (M2.6) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
| Voltage Rating | 350 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.13 | |
| 10 | $ 10.01 | |||
| 35 | $ 9.43 | |||
| 70 | $ 9.19 | |||
| 105 | $ 8.95 | |||
| 245 | $ 7.98 | |||
| 455 | $ 7.50 | |||
| 945 | $ 6.63 | |||
Description
General part information
RDBD Series
25 Position D-Sub Receptacle, Female Sockets Connector
