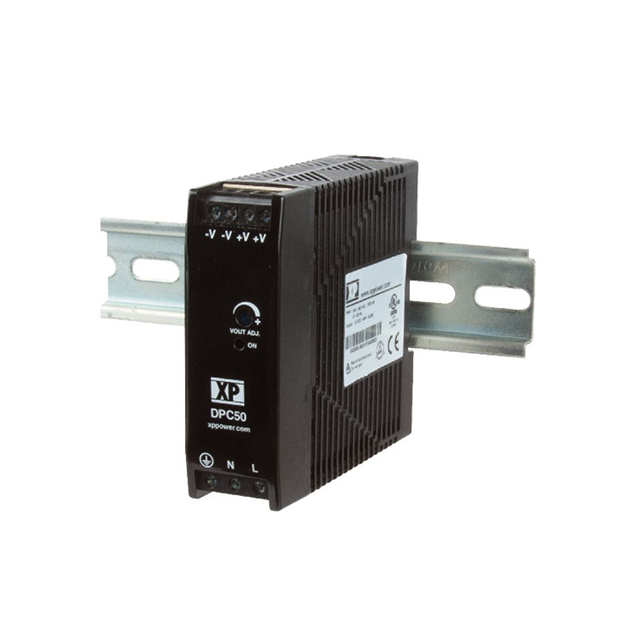

DPC50US05

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 5V 50W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 5V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	DPC50US05

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	7 A
Efficiency	83 %
Features	Adjustable Output, Universal Input
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	50 W
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Efficiency	Approval Agency	Features	Input Type	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Minimum Load Required	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Current - Output (Max)
XP POWER DPC50US05	83 %	CE	Adjustable Output Universal Input	AC	ITE (Commercial)	85 VAC	264 VAC		1	-25 °C	70 °C	3000 V	50 W	5 V	7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 5V 50W
