306-030-421-107

Active

EDAC Inc.

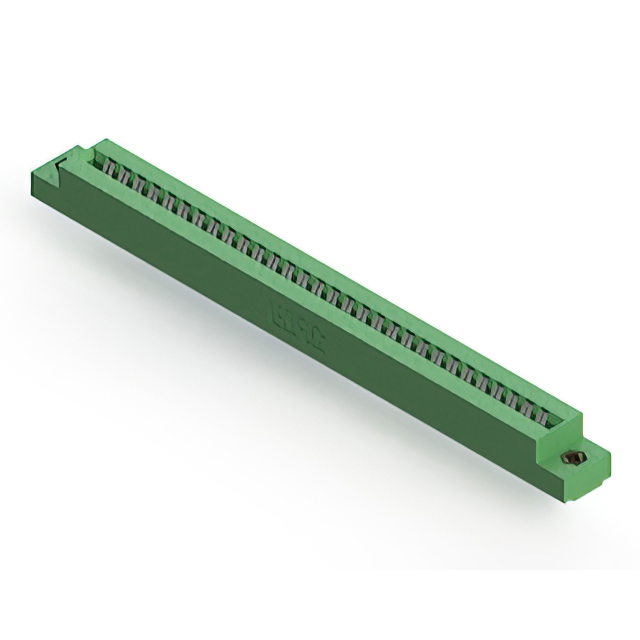

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

306-030-421-107

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-030-421-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-030 Series

Part	Number of Positions	Color	Mounting Type	Contact Type	Gender	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Card Type	Number of Positions/Bay/Row [custom]	Contact Finish	Termination Rows	Features	Contact Material	Number of Rows	Pitch [x]	Pitch [x]	Read Out	Flange Feature	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 306-030-420-178	60	Green	Panel Mount Through Hole	Cantilever	Female	Solder	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Tin	1	Card Guides	Copper Alloy	2	0.156 in	3.96 mm	Dual	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 306-030-400-104	60	Green		Cantilever	Female	Solder Eyelet(s)	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Tin	1		Copper Alloy	2	0.156 in	3.96 mm	Dual	Flush Mount Top Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	0.156 in
EDAC Inc. 306-030-520-101	60	Green	Through Hole	Cantilever	Female	Solder	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Gold	1		Copper Alloy	2	0.156 in	3.96 mm	Dual		1.37 mm	0.054 "	1.78 mm	0.07 in			10 Áin	0.25 Ám
EDAC Inc. 306-030-421-101	60	Green	Through Hole	Cantilever	Female	Solder	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Tin	1		Copper Alloy	2	0.156 in	3.96 mm	Dual		1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 306-030-420-102	60	Green	Panel Mount Through Hole	Cantilever	Female	Solder	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Tin	1		Copper Alloy	2	0.156 in	3.96 mm	Dual	Flush Mount Top Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "
EDAC Inc. 306-030-400-102	60	Green		Cantilever	Female	Solder Eyelet(s)	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Tin	1		Copper Alloy	2	0.156 in	3.96 mm	Dual	Flush Mount Top Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "
EDAC Inc. 306-030-520-107	60	Green	Panel Mount Through Hole	Cantilever	Female	Solder	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Gold	1		Copper Alloy	2	0.156 in	3.96 mm	Dual	Flush Mount M3 Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in			10 Áin	0.25 Ám
EDAC Inc. 306-030-421-107	60	Green	Panel Mount Through Hole	Cantilever	Female	Solder	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Tin	1		Copper Alloy	2	0.156 in	3.96 mm	Dual	Flush Mount M3 Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 306-030-521-168	60	Green	Panel Mount Through Hole	Cantilever	Female	Solder	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Gold	1	Card Guides	Copper Alloy	2	0.156 in	3.96 mm	Dual	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in			10 Áin	0.25 Ám
EDAC Inc. 306-030-521-178	60	Green	Panel Mount Through Hole	Cantilever	Female	Solder	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	Gold	1	Card Guides	Copper Alloy	2	0.156 in	3.96 mm	Dual	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in			10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.00
LCSC	Piece	1	$ 10.88
		200	$ 4.21
		500	$ 4.06
		1000	$ 3.99
Newark	Each	1	$ 20.91
		100	$ 12.97
		250	$ 10.95
		500	$ 9.73
		1000	$ 8.16

Description

General part information

306-030 Series

60 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
