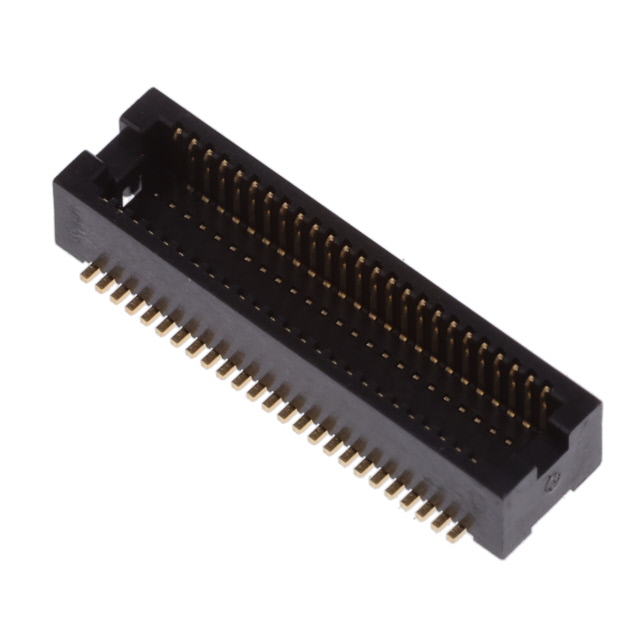

DF12NC(3.5)-50DP-0.5V(51)
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF12NC(3.5)-50DP-0.5V(51)
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF12NC(3.5)-50DP-0.5V(51) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Height Above Board [z] | 0.11 " |
| Height Above Board [z] | 2.8 mm |
| Mated Stacking Heights | 3.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.32 | |
| 10 | $ 2.02 | |||
| 25 | $ 1.93 | |||
| 50 | $ 1.89 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.50 | |||
| Digi-Reel® | 1 | $ 2.32 | ||
| 10 | $ 2.02 | |||
| 25 | $ 1.93 | |||
| 50 | $ 1.89 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.50 | |||
| Tape & Reel (TR) | 1000 | $ 1.29 | ||
| 2000 | $ 1.24 | |||
| 3000 | $ 1.20 | |||
| 5000 | $ 1.14 | |||
Description
General part information
DF12NC(3.5) Series
50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
