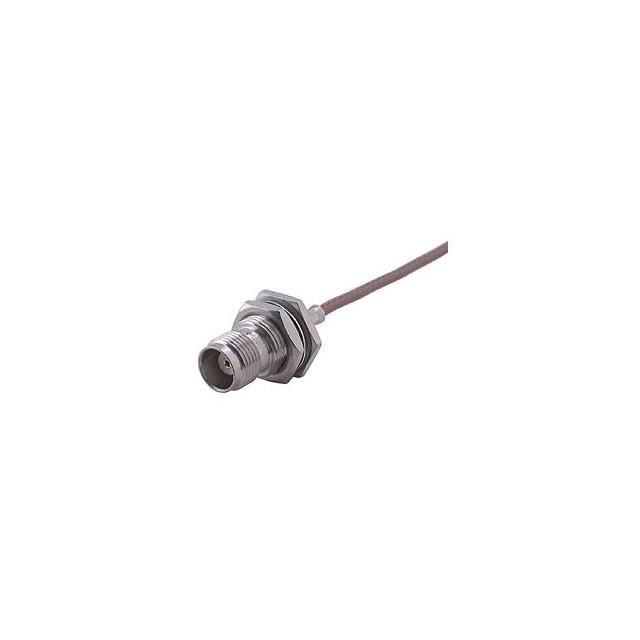

24_TNC-50-2-29/133_NH

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

24_TNC-50-2-29/133_NH

Active

Huber+Suhner, Inc.

24_TNC-50-2-29/133_NH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	24_TNC-50-2-29/133_NH

Body Finish	White Bronze
Body Material	Brass
Cable Group	RD-316
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

24_TNC-50 Series

Part	Connector Style	Dielectric Material	Contact Termination	Voltage Rating	Impedance	Connector Type	Frequency - Max [Max]	Housing Color	Center Contact Plating	Mounting Feature	Number of Ports	Mating Cycles	Shield Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Body Material	Cable Group	Cable Group
Huber+Suhner, Inc. 24_TNC-50-4-52/133_NE	TNC	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	500 V	50 Ohms	Female Socket Jack	15 GHz	Silver	Gold	Bulkhead - Front Side Nut	1	500	Crimp	Beryllium Copper	-65 ░C	165 °C	White Bronze	Brass
Huber+Suhner, Inc. 24_TNC-50-2-29/133_NH	TNC	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	500 V	50 Ohms	Female Socket Jack	11 GHz	Silver	Gold	Bulkhead - Front Side Nut	1	500	Crimp	Beryllium Copper Brass	-65 ░C	165 °C	White Bronze	Brass	RD-316
Huber+Suhner, Inc. 24_TNC-50-3-23/133_NE	TNC	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	500 V	50 Ohms	Female Socket Jack	11 GHz	Silver	Gold	Bulkhead - Front Side Nut	1	500	Crimp	Beryllium Copper	-65 ░C	165 °C	White Bronze	Brass	RG-58
Huber+Suhner, Inc. 24_TNC-50-2-27/133_NE	TNC	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	500 V	50 Ohms	Female Socket Jack	11 GHz	Silver	Gold	Bulkhead - Front Side Nut	1	500	Crimp	Beryllium Copper	-65 ░C	165 °C	White Bronze	Brass	188 316 RG-174
Huber+Suhner, Inc. 24_TNC-50-3-30/133_NH	TNC	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	500 V	50 Ohms	Female Socket Jack	11 GHz	Silver	Gold	Bulkhead - Front Side Nut	1	500	Solder	Beryllium Copper	-65 ░C	165 °C	White Bronze	Brass	RG-141
Huber+Suhner, Inc. 24_TNC-50-7-5/133_NE	TNC	Polytetrafluoroethylene (PTFE)	Crimp	500 V	50 Ohms	Female Socket Jack	11 GHz	Silver	Gold	Bulkhead - Front Side Nut	1	500	Crimp	Bronze	-65 ░C	165 °C	White Bronze	Brass
Huber+Suhner, Inc. 24_TNC-50-1-1/133_NE	TNC	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder		50 Ohms	Female Socket Jack	11 GHz	Silver	Gold	Bulkhead	1		Clamp	Beryllium Copper	-65 ░C	165 °C	Tri-Metal	Brass	RG-178	196

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 20.02

Description

General part information

24_TNC-50 Series

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
