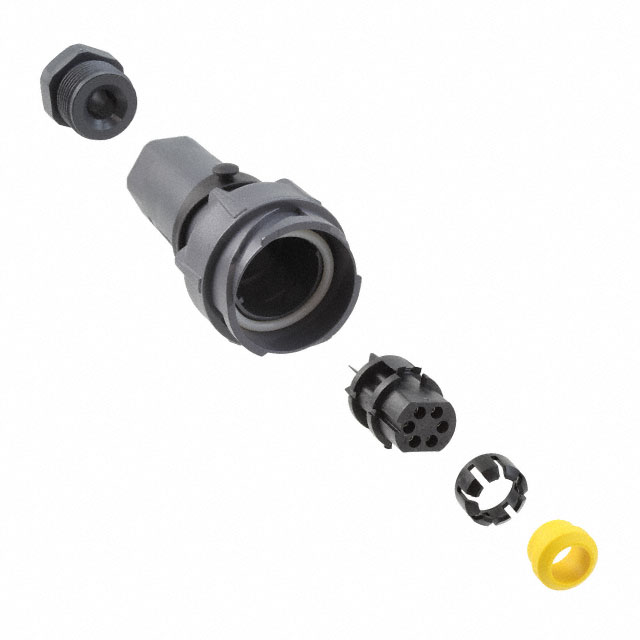

PXP7011/06S/ST/1113

Active

BULGIN LIMITED

CONN RCPT FMALE 6P NICKEL SCREW

Deep-Dive with AI

Search across all available documentation for this part.

Documents7000 Series UL Cert of Compliance 7000 Series Plastic Wiring Instr +1

PXP7011/06S/ST/1113

Active

BULGIN LIMITED

CONN RCPT FMALE 6P NICKEL SCREW

Deep-Dive with AI

Documents7000 Series UL Cert of Compliance 7000 Series Plastic Wiring Instr +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXP7011/06S/ST/1113

Backshell Material, Plating	Polycarbonate/Polybutylene Terephthalate (PBT)
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 V

PXP7011 Series

Part	Number of Positions	Orientation	Backshell Material, Plating	Connector Type	Primary Material	Contact Material	Material Flammability Rating	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Mating	Shielding	Ingress Protection	Shell Material	Voltage Rating	Features	Current Rating (Amps)	Fastening Type	Contact Type	Note	Contact Shape	Type	Housing Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PXP7011/06S/ST/1113	6	Keyed	Polycarbonate/Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Plastic	Brass	UL94 V-0	Free Hanging (In-Line)	Gray	-40 °C	120 °C	Screw	Nickel	Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	600 V	Backshell	10 A	Bayonet Lock
BULGIN LIMITED PXP7011/02S/ST/1113	2	Keyed	Polycarbonate/Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Plastic	Brass	UL94 V-0	Free Hanging (In-Line)	Gray	-40 °C	120 °C	Screw	Nickel	Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	600 V	Backshell	25 A	Bayonet Lock
BULGIN LIMITED PXP7011/02S/ST/1315	2	Keyed	Polycarbonate/Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Plastic	Brass	UL94 V-0	Free Hanging (In-Line)	Gray	-40 °C	120 °C	Screw	Nickel	Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	600 V	Backshell	25 A	Bayonet Lock
BULGIN LIMITED PXP7011/06P/ST/0911	6	Keyed	Polycarbonate/Polybutylene Terephthalate (PBT)	Male Pins Receptacle	Plastic	Brass	UL94 V-0	Free Hanging (In-Line)	Gray	-40 °C	120 °C	Screw	Nickel	Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	600 V	Backshell	10 A	Bayonet Lock
BULGIN LIMITED PXP7011/10P/CR/1113	10	Keyed		Receptacle Housing	Plastic		UL94 V-0	Free Hanging (In-Line)		-40 °C	120 °C			Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free		Backshell		Bayonet Lock	Crimp and Solder Cup	Contacts Not Included	Circular	For Male Pins	Gray
BULGIN LIMITED PXP7011/03P/ST/1315		Keyed	Polycarbonate/Polybutylene Terephthalate (PBT)	Male Pins Receptacle	Plastic	Brass	UL94 V-0	Free Hanging (In-Line)	Gray	-40 °C	120 °C	Screw	Nickel	Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	600 V	Backshell	25 A	Bayonet Lock						3	1	2
BULGIN LIMITED PXP7011/06P/ST/1315	6	Keyed	Polycarbonate/Polybutylene Terephthalate (PBT)	Male Pins Receptacle	Plastic	Brass	UL94 V-0	Free Hanging (In-Line)	Gray	-40 °C	120 °C	Screw	Nickel	Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	600 V	Backshell	10 A	Bayonet Lock
BULGIN LIMITED PXP7011/02S/ST/0911	2	Keyed	Polycarbonate/Polybutylene Terephthalate (PBT)	Receptacle Female Sockets	Plastic	Brass	UL94 V-0	Free Hanging (In-Line)	Gray	-40 °C	120 °C	Screw	Nickel	Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	600 V	Backshell	25 A	Bayonet Lock
BULGIN LIMITED PXP7011/10S/CR/0507	10	Keyed		Receptacle Housing	Plastic		UL94 V-0	Free Hanging (In-Line)		-40 °C	120 °C			Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free		Backshell		Bayonet Lock	Crimp and Solder Cup	Contacts Not Included	Circular	For Female Sockets	Gray
BULGIN LIMITED PXP7011/32S/CR/0507	32	Keyed		Receptacle Housing	Plastic		UL94 V-0	Free Hanging (In-Line)		-40 °C	120 °C			Unshielded	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free		Backshell		Bayonet Lock	Crimp and Solder Cup	Contacts Not Included	Circular	For Female Sockets	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 28.11

Description

General part information

PXP7011 Series

6 (Power) Position Circular Connector Receptacle, Female Sockets Screw

Documents

Technical documentation and resources

7000 Series UL Cert of Compliance

7000 Series Plastic Wiring Instr

Datasheet
