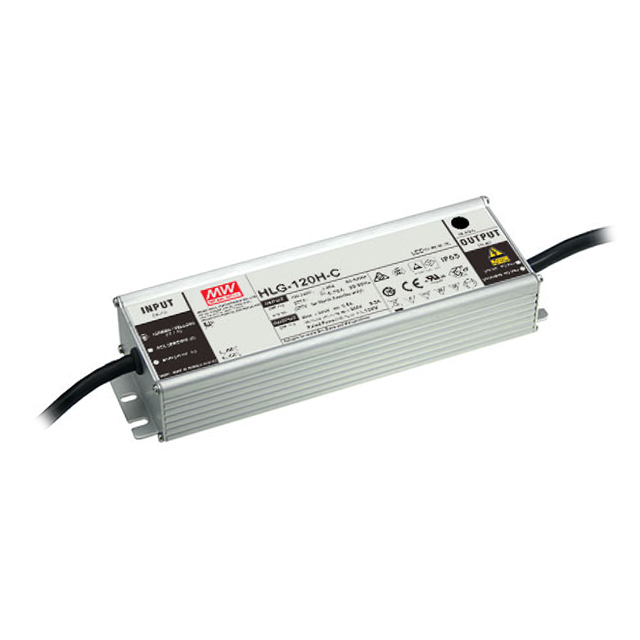

HLG-120H-C500A
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 150-300V 500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLG-120H-C500A
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 150-300V 500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLG-120H-C500A |
|---|---|
| Approval Agency | CCC, RCM, PSE, CE, CB, ENEC, cURus |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 94 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 150 W |
| Ratings | IP65 |
| Size / Dimension [x] | 7.72 " |
| Size / Dimension [x] | 196 mm |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [z] | 1.53 in |
| Size / Dimension [z] | 38.8 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 300 V |
| Voltage - Output [Min] | 150 V |
HLG-120H Series
| Part | Current - Output (Max) [Max] | Voltage - Output [Min] | Voltage - Output [Max] | Termination Style | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Efficiency | Dimming | Ratings | Voltage - Isolation | Type | Power (Watts) | Voltage - Input (Min) [Min] | Features | Approval Agency | Topology | Voltage - Input (Max) [Max] | Mounting Type | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 8 A | 7.5 V | 15 V | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 92 % | Analog PWM | IP67 | 3750 V | Constant Current Voltage | 120 W | 90 VAC | OCP OTP OVP SCP | CB CCC CE cURus ENEC PSE RCM TUV | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 80 C | |
MEAN WELL USA Inc. | 4 A | 15 V | 30 VDC | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 93 % | Analog PWM | IP67 | 3750 V | Constant Current Voltage | 120 W | 90 VAC | OCP OTP OVP SCP | CB CCC CE cURus ENEC PSE RCM TUV | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 80 C | |
MEAN WELL USA Inc. | 500 mA | 150 V | 300 V | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 94 % | IP65 | 3750 V | Constant Current | 150 W | 90 VAC | OTP OVP SCP | CB CCC CE cURus ENEC PSE RCM | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 90 °C | ||
MEAN WELL USA Inc. | 2.5 A | 24 V | 48 V | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 93.5 % | Analog PWM | IP67 | 3750 V | Constant Current Voltage | 120 W | 90 VAC | OCP OTP OVP SCP | CB CCC CE cURus ENEC PSE RCM TUV | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 80 C | |
MEAN WELL USA Inc. | 1.05 A | 74 V | 148 V | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 94 % | IP65 | 3750 V | Constant Current | 155 W | 90 VAC | OTP OVP SCP | CB CCC CE cURus ENEC PSE RCM | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 90 °C | ||
MEAN WELL USA Inc. | 10 A | 6 V | 12 V | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 92 % | IP67 | 3750 V | Constant Current Voltage | 120 W | 90 VAC | OCP OTP OVP SCP | CB CCC CE cURus ENEC PSE RCM TUV | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 80 C | ||
MEAN WELL USA Inc. | 2.5 A | 24 V | 48 V | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 93.5 % | IP67 | 3750 V | Constant Current Voltage | 120 W | 90 VAC | OCP OTP OVP SCP | CB CCC CE cURus ENEC PSE RCM TUV | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 80 C | ||
MEAN WELL USA Inc. | 6 A | 17 V | 22 V | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 93 % | IP65 | 3750 V | Constant Current Voltage | 120 W | 90 VAC | OCP OTP OVP SCP | CB CCC CE cURus ENEC PSE RCM TUV | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 80 C | ||
MEAN WELL USA Inc. | 2.5 A | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 93.5 % | IP65 | 3750 V | Constant Current Voltage | 120 W | 90 VAC | OCP OTP OVP SCP | CB CCC CE cURus ENEC KC PSE RCM TUV | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 80 C | 48 V | |||
MEAN WELL USA Inc. | 5 A | Wire Leads | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | 93 % | Analog PWM | IP65 | 3750 V | Constant Current Voltage | 120 W | 90 VAC | OCP OTP OVP SCP | CB CCC CE cURus ENEC KC PSE RCM TUV | AC DC Converter | 305 VAC | Chassis Mount | 1 | -40 °C | 80 C | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 55.25 | |
| 5 | $ 51.22 | |||
| 10 | $ 49.58 | |||
| 25 | $ 47.49 | |||
Description
General part information
HLG-120H Series
500mA 150 ~ 300V Constant Current LED Driver AC DC Converter Topology 1 Output
