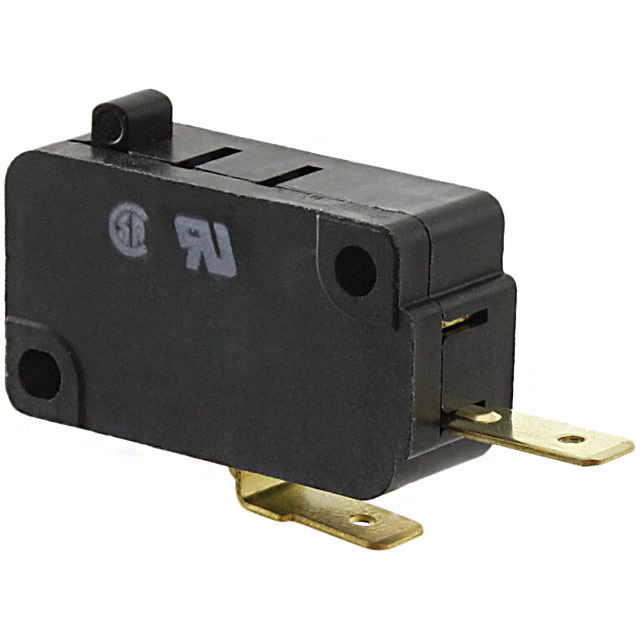

V7-2A27D8 - V7-2A27D8

V7-2A27D8

Obsolete
Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Basic Switches CatalogDatasheet+1
V7-2A27D8 - V7-2A27D8

V7-2A27D8

Obsolete
Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 5A 125V

Deep-Dive with AI

DocumentsV7 Series Basic Switches CatalogDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationV7-2A27D8
Actuator TypeRound (Pin Plunger)
CircuitSPST-NO
Current Rating (Amps)5 A
Differential Travel0.25 mm
Differential Travel0.01 in
Electrical Life100000 Cycles
Mechanical Life10000000 Cycles
Mounting TypeChassis Mount
Operating Force75 gf
Operating Position0.579 in
Operating Position14.7 mm
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Overtravel1.27 mm
Overtravel0.05 in
Pretravel0.047 in
Pretravel1.2 mm
Release Force10 gf
Switch FunctionOff-Mom
Termination StyleQuick Connect - 0.187" (4.7mm)
Voltage Rating - AC125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

V7-2A2 Series

Switch SPST-NO Chassis Mount
