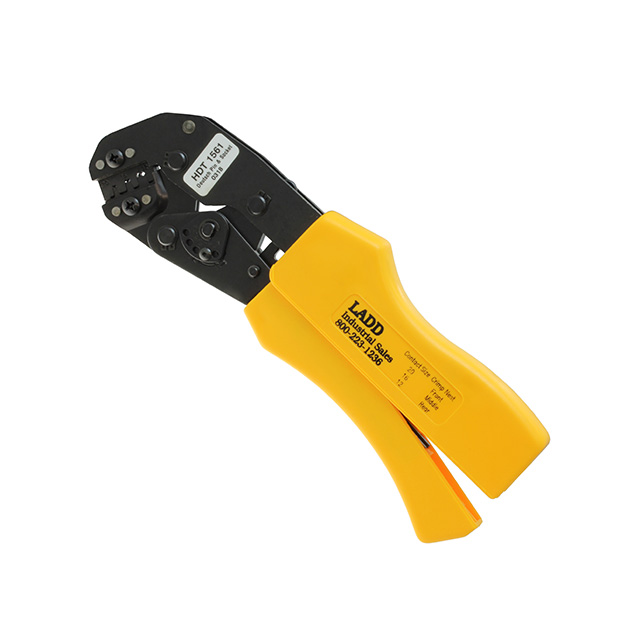

HDT-1561

Obsolete

TE Application Tooling

CMP HAND SZ 20,16,12 SOLID FIELD

Search across all available documentation for this part.

Obsolete

TE Application Tooling

CMP HAND SZ 20,16,12 SOLID FIELD

Technical Specifications

Parameters and characteristics for this part

Specification	HDT-1561

For Use With/Related Products	Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	20 AWG
Wire Gauge or Range - AWG [Min]	12 AWG

Part	For Use With/Related Products	Tool Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Entry Location	Ratcheting
TE Application Tooling HDT-48-00	Contacts	Hand Crimper	20 AWG	12 AWG
TE Application Tooling HDT-1561	Contacts	Hand Crimper	20 AWG	12 AWG	Side Entry	Ratchet
TE Application Tooling HDT-04-10	Contacts	Hand Crimper	10 AWG	4 AWG	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Hand Crimper Tool Contacts

Technical documentation and resources
