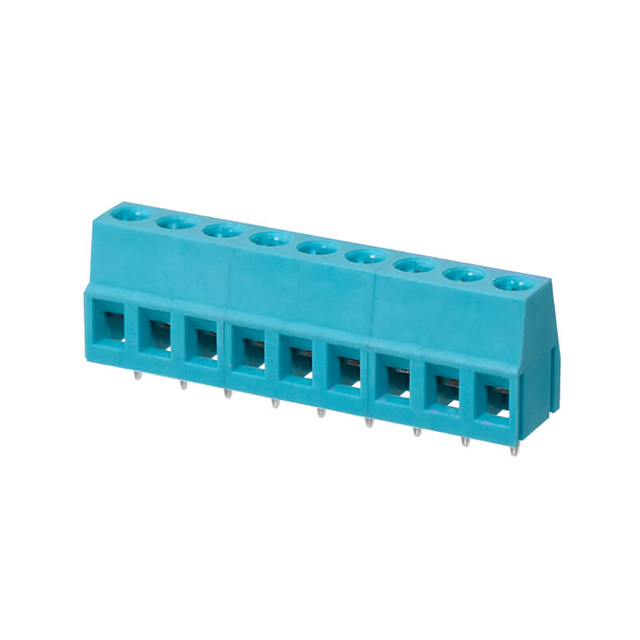

TB004-508-09BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.08

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TB004-508-09BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.08

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TB004-508-09BE

Clamp Material - Plating	Copper Alloy - Nickel Plated
Color	Blue
Contact Material - Plating	Copper Alloy - Tin Plated
Current	16 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	9
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

TB004 Series

Part	Contact Material - Plating	Clamp Material - Plating	Wire Gauge [Min]	Wire Gauge [Max]	Screw Material - Plating	Voltage	Color	Current	Wire Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Mating Orientation	Number of Levels	Mounting Type	Pitch [x]	Pitch [x]	Screw Thread	Positions Per Level
CUI Devices TB004-508-24BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3
CUI Devices TB004-508-10BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	10
CUI Devices TB004-508-09BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	9
CUI Devices TB004-508-23BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	23
CUI Devices TB004-508-06BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	6
CUI Devices TB004-508-02BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	2
CUI Devices TB004-508-15BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	15
CUI Devices TB004-508-04BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	4
CUI Devices TB004-508-07BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	7
CUI Devices TB004-508-22BE	Copper Alloy - Tin Plated	Copper Alloy - Nickel Plated	12 AWG	24 AWG	Steel Zinc Plated	300 V	Blue	16 A	Screw - Rising Cage Clamp	Interlocking (Side)	-40 °C	105 ░C	4.4 Lb-In	0.5 Nm	Horizontal with Board	1	Through Hole	0.2 in	5.08 mm	M3	22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.67
		10	$ 1.26
		25	$ 1.17
		50	$ 1.05
		100	$ 1.03
		250	$ 0.90
		510	$ 0.82
		1020	$ 0.74
		5100	$ 0.65

Description

General part information

TB004 Series

9 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
