811-SS-003-30-001191

Active

PRECI-DIP SA

CONN SPRING PISTON 3POS SMD

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONN SPRING PISTON 3POS SMD

Technical Specifications

Parameters and characteristics for this part

...

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Number of Contacts	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Material	Number of Contacts [custom]
PRECI-DIP SA 811-SS-009-30-026101	19.7 µin	0.5 µm	Surface Mount	Piston	9	1	Gold	2.54 mm	0.1 in	Brass
PRECI-DIP SA 811-SS-010-30-024101	19.7 µin	0.5 µm	Surface Mount	Piston	10	1	Gold	2.54 mm	0.1 in	Brass
PRECI-DIP SA 811-SS-002-30-002191	19.7 µin	0.5 µm	Surface Mount	Piston		1	Gold	2.54 mm	0.1 in	Brass
PRECI-DIP SA 811-SS-005-30-001191	19.7 µin	0.5 µm	Surface Mount	Piston	5	1	Gold	2.54 mm	0.1 in	Brass
PRECI-DIP SA 811-SS-007-30-001101	19.7 µin	0.5 µm	Surface Mount	Piston	7	1	Gold	2.54 mm	0.1 in	Brass
PRECI-DIP SA 811-SS-005-30-022101	19.7 µin	0.5 µm	Surface Mount	Piston	5	1	Gold	2.54 mm	0.1 in	Brass
PRECI-DIP SA 811-SS-002-30-008191	19.7 µin	0.5 µm	Surface Mount	Piston		1	Gold	2.54 mm	0.1 in	Brass
PRECI-DIP SA 811-SS-006-30-001191	19.7 µin	0.5 µm	Surface Mount	Piston		1	Gold	2.54 mm	0.1 in	Brass	6
PRECI-DIP SA 811-SS-008-30-001101	19.7 µin	0.5 µm	Surface Mount	Piston	8	1	Gold	2.54 mm	0.1 in	Brass
PRECI-DIP SA 811-SS-003-30-001191	19.7 µin	0.5 µm	Surface Mount	Piston	3	1	Gold	2.54 mm	0.1 in	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6500	$ 1.42

General part information

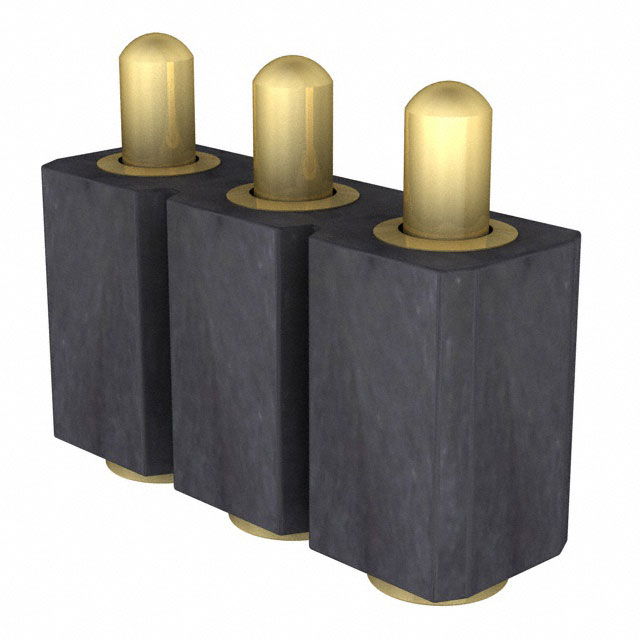

3 Position Spring Piston Connector Surface Mount

Technical documentation and resources

No documents available
