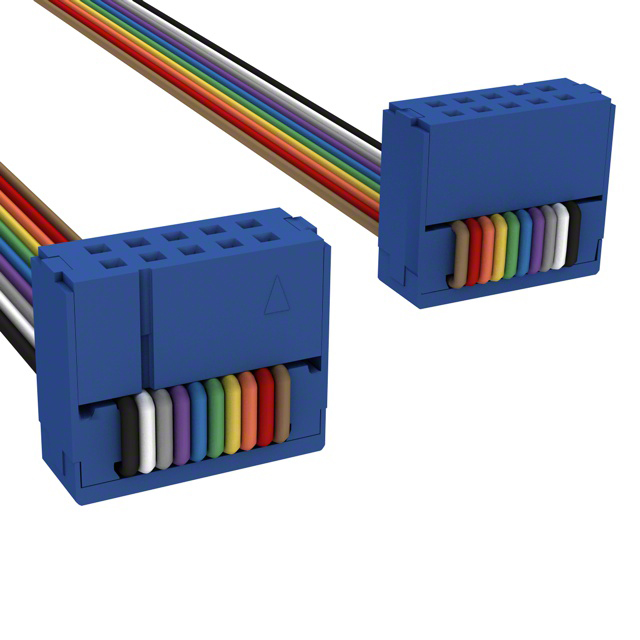

C3BBS-1018M

Active

CW Industries

IDC CABLE - CSR10S/AE10M/CSR10S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3BBS-1018M

Active

CW Industries

IDC CABLE - CSR10S/AE10M/CSR10S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3BBS-1018M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

C3BBS-1 Series

Part	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Connector Type	Pitch - Cable	Pitch - Cable	Color	Length [x]	Length [x]	Number of Positions	Number of Rows	Shielding	Number of Positions	Length	Length	Length
CW Industries C3BBS-1418M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon	457.2 mm	1.5 ft	14	2	Unshielded
CW Industries C3BBS-1018G	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm		457.2 mm	1.5 ft	10	2	Unshielded
CW Industries C3BBS-1036M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon	914.4 mm	3 ft	10	2	Unshielded
CW Industries C3BBS-1606M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon				2	Unshielded	16	152.4 mm	6 "	0.5 '
CW Industries C3BBS-1436G	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm		914.4 mm	3 ft	14	2	Unshielded
CW Industries C3BBS-1018M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon	457.2 mm	1.5 ft	10	2	Unshielded
CW Industries C3BBS-1006M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon			10	2	Unshielded		152.4 mm	6 "	0.5 '
CW Industries C3BBS-1036G	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm		914.4 mm	3 ft	10	2	Unshielded
CW Industries C3BBS-1636M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon	914.4 mm	3 ft		2	Unshielded	16
CW Industries C3BBS-1406G	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm				14	2	Unshielded		152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.61
		10	$ 8.14
		25	$ 7.35
		50	$ 6.82
		100	$ 6.34
		250	$ 5.77
		500	$ 5.38
		1000	$ 5.03

Description

General part information

C3BBS-1 Series

10 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)

Documents

Technical documentation and resources
