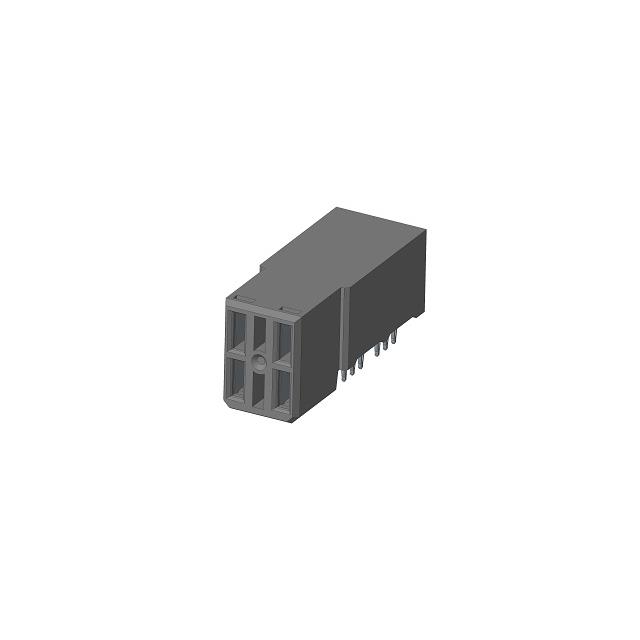

10052620-4555P00LF
ActiveAmphenol ICC (FCI)
CONN RCPT BLADE PWR 4POS EDGE MT
Deep-Dive with AI
Search across all available documentation for this part.
10052620-4555P00LF
ActiveAmphenol ICC (FCI)
CONN RCPT BLADE PWR 4POS EDGE MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10052620-4555P00LF |
|---|---|
| Color | Black |
| Connector Style | Blade Power |
| Connector Type | Receptacle, Female Blade Sockets |
| Connector Usage | Coplanar |
| Connector Usage | Daughtercard |
| Contact Finish | GXT™, Gold or Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical | 4 Power |
| Features | Board Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Columns | 2 |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.44 | |
| 10 | $ 10.33 | |||
| 25 | $ 9.33 | |||
| 50 | $ 8.66 | |||
| 100 | $ 8.05 | |||
| 250 | $ 7.33 | |||
| 500 | $ 6.85 | |||
| 1000 | $ 6.41 | |||
Description
General part information
10052620 Series
4 Connector Receptacle, Female Blade Sockets Board Edge, Through Hole, Right Angle Black Blade Power
