RD1-1A-DC-1-AL

Active

Switch Components

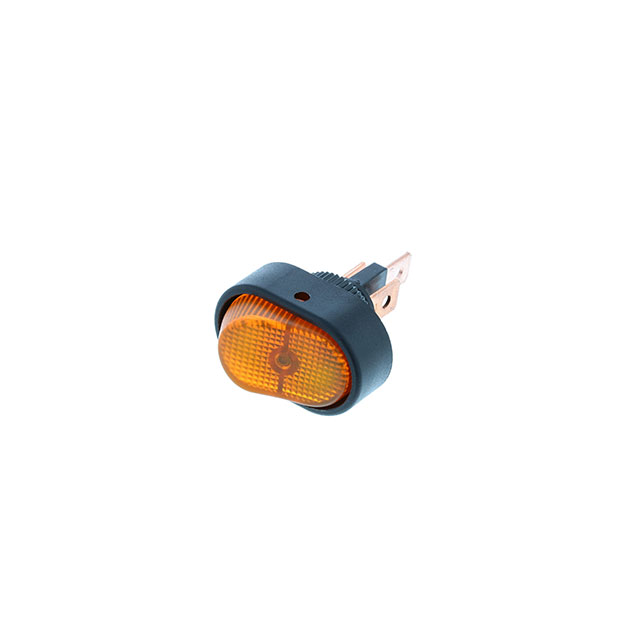

ROCKER; SPST; POS: 2; ON-OFF; 30A/12VDC; AMBER; LED; RD; BODY: BLACK

Search across all available documentation for this part.

Active

Switch Components

ROCKER; SPST; POS: 2; ON-OFF; 30A/12VDC; AMBER; LED; RD; BODY: BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	RD1-1A-DC-1-AL

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Amber
Electrical Life	6000 Cycles
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Termination Style	Mounting Type	Electrical Life	Switch Function	Actuator Marking	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Mechanical Life	Circuit	Illumination Voltage (Nominal)	Actuator Type
Switch Components RD1-1A-DC-1-UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Threaded Body with Nut	6000 Cycles	On-Off	No Marking	Blue LED	-25 °C	85 °C	Blue	12 V	12.2 mm	10000 Steps	SPST	12 VDC	Concave (Curved) - Illuminated
Switch Components RD1-1A-DC-1-B	Quick Connect - 0.250" (6.3mm)	Panel Mount Threaded Body with Nut	6000 Cycles	On-Off	No Marking		-25 °C	85 °C	Black	12 V	12.2 mm	10000 Steps	SPST		Concave (Curved)
Switch Components RD1-1A-DC-1-GL	Quick Connect - 0.250" (6.3mm)	Panel Mount Threaded Body with Nut	6000 Cycles	On-Off	No Marking	Green LED	-25 °C	85 °C	Green	12 V	12.2 mm	10000 Steps	SPST	12 VDC	Concave (Curved) - Illuminated
Switch Components RD1-1A-DC-1-AL	Quick Connect - 0.250" (6.3mm)	Panel Mount Threaded Body with Nut	6000 Cycles	On-Off	No Marking	Amber LED	-25 °C	85 °C	Amber	12 V	12.2 mm	10000 Steps	SPST	12 VDC	Concave (Curved) - Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.75
TME	N/A	1	$ 3.19

General part information

Rocker Switch SPST 30A (DC) Panel Mount, Threaded Body with Nut
