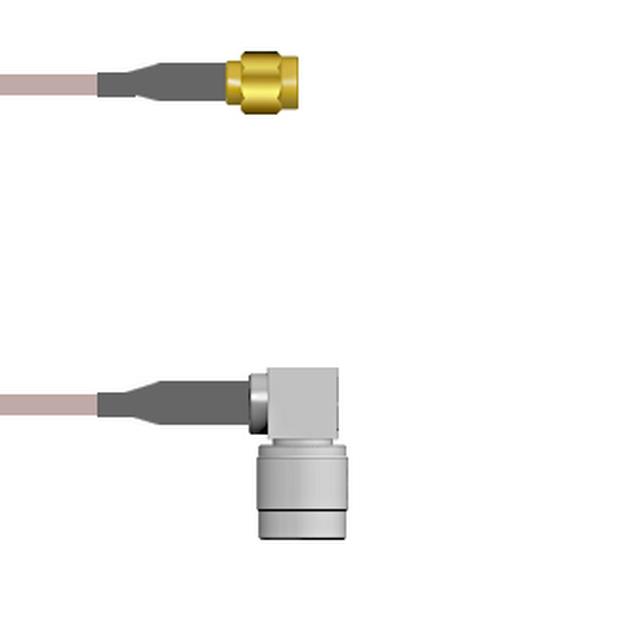

Q-3C04U000R0.5M

Active

Amphenol Custom Cable

COAX CBL SMA TO TNC 19.6"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO TNC 19.6"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector	Features	Frequency - Max [Max]	Cable Impedance	1st Connector Mounting Type	1st Contact Gender	2nd Contact Gender	Cable Type	1st Connector	Connector Impedance	Color	2nd Connector Mounting Type	Style	Length	Length	Length	Overall Impedance
Amphenol Custom Cable Q-3C04U000R001M	TNC Plug Right Angle	Shielded	3 GHz	50 Ohms	Free Hanging (In-Line)	Male	Male	RG-316 DS	SMA Plug	50 Ohms	Copper	Free Hanging (In-Line)	SMA to TNC	1 m	3.3 ft	39.4 in	50 Ohms
Amphenol Custom Cable Q-3C04U000R003I	TNC Plug Right Angle	Shielded	3 GHz	50 Ohms	Free Hanging (In-Line)	Male	Male	RG-316 DS	SMA Plug	50 Ohms	Copper	Free Hanging (In-Line)	SMA to TNC	76.2 mm		3 in	50 Ohms
Amphenol Custom Cable Q-3C04U000R0.5M	TNC Plug Right Angle	Shielded	3 GHz	50 Ohms	Free Hanging (In-Line)	Male	Male	RG-316 DS	SMA Plug	50 Ohms	Copper	Free Hanging (In-Line)	SMA to TNC	50 cm		19.69 "	50 Ohms
Amphenol Custom Cable Q-3C04U000R003M	TNC Plug Right Angle	Shielded	3 GHz	50 Ohms	Free Hanging (In-Line)	Male	Male	RG-316 DS	SMA Plug	50 Ohms	Copper	Free Hanging (In-Line)	SMA to TNC	3 m	9.8 '	118.1 in	50 Ohms
Amphenol Custom Cable Q-3C04U000R009I	TNC Plug Right Angle	Shielded	3 GHz	50 Ohms	Free Hanging (In-Line)	Male	Male	RG-316 DS	SMA Plug	50 Ohms	Copper	Free Hanging (In-Line)	SMA to TNC	228.6 mm		9 "	50 Ohms
Amphenol Custom Cable Q-3C04U000R048I	TNC Plug Right Angle	Shielded	3 GHz	50 Ohms	Free Hanging (In-Line)	Male	Male	RG-316 DS	SMA Plug	50 Ohms	Copper	Free Hanging (In-Line)	SMA to TNC	1200 mm	4 ft	48 in	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-316 DS 19.69" (500.00mm)

Technical documentation and resources

No documents available
