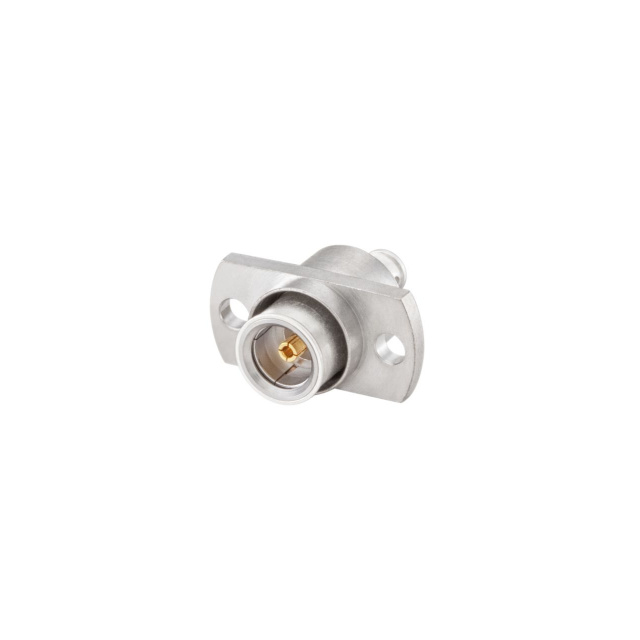

10K762-271N3

Active

Rosenberger

PRECISION SP PANEL JACK

Search across all available documentation for this part.

Active

Rosenberger

PRECISION SP PANEL JACK

Technical Specifications

Parameters and characteristics for this part

Specification	10K762-271N3

Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RPC-SP
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	400 V

Part	Mating Cycles	Connector Type	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Housing Color	Fastening Type	Voltage Rating	Impedance	Number of Ports	Center Contact Plating	Dielectric Material	Shield Termination	Body Finish	Contact Termination	Center Contact Material	Connector Style
Rosenberger 10K762-271N3	1000	Female Socket Jack	22 GHz	85 °C	-40 °C	Brass	Silver	Snap-On	400 V	50 Ohms	1	Gold	Polytetrafluoroethylene (PTFE)	Solder	Silver	Solder	Beryllium Copper	RPC-SP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 108.42

General part information

RPC-SP Connector Jack, Female Socket 50 Ohms Panel Mount Solder
