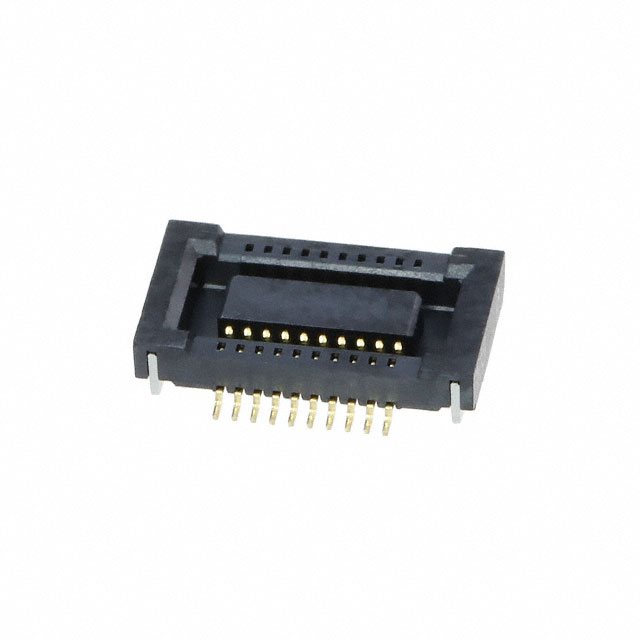

DF18B-20DS-0.4V(81)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF18B-20DS-0.4V(81)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Connector Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Features
Hirose Electric USA, Inc. DF18B-20DS-0.4V(81)	Gold	Center Strip Contacts Receptacle	1.5 mm	0.057 in	1.45 mm	2	Surface Mount	0.016 in	0.4 mm	20	Solder Retention
Hirose Electric USA, Inc. DF18B-100DS-0.4V(74)
Hirose Electric USA, Inc. DF18B-100DS-0.4V(81)	Gold	Center Strip Contacts Receptacle	1.5 mm	0.057 in	1.45 mm	2	Surface Mount	0.016 in	0.4 mm	100	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
