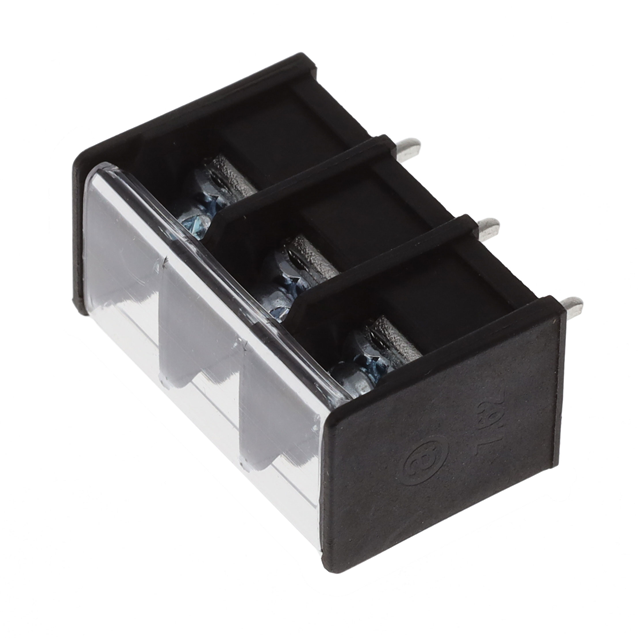

YK3030323000G

Active

Amphenol Anytek

CONN BARRIER STRIP 3CIRC 0.3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YK3030323000G

Active

Amphenol Anytek

CONN BARRIER STRIP 3CIRC 0.3"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YK3030323000G

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	15 A
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	3
Number of Rows	1
Number of Wire Entries	3
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

YK303 Series

Part	Top Termination	Bottom Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Terminal Screw Finish	Number of Rows	Material - Insulation	Number of Wire Entries	Terminal Screw Material	Current Rating (Amps)	Terminal Block Type	Pitch [x]	Pitch [x]	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Material Flammability Rating	Voltage Rating	Mounting Type
Amphenol Anytek YK3030623000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	6	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	6	UL94 V-0	300 VDC	Through Hole
Amphenol Anytek YK3032003000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	20	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	20	UL94 V-0	300 VDC	Through Hole
Amphenol Anytek YK30305030J6G	Screws with Captive Plate	PC Pin			Black		1	Thermoplastic	5			Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)			5	UL94 V-0		Through Hole
Amphenol Anytek YK3030603000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	6	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	6	UL94 V-0	300 VDC	Through Hole
Amphenol Anytek YK3031223000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	12	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	12	UL94 V-0	300 VDC	Through Hole
Amphenol Anytek YK3031603000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	16	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	16	UL94 V-0	300 VDC	Through Hole
Amphenol Anytek YK3030223000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	2	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	2	UL94 V-0	300 VDC	Through Hole
Amphenol Anytek YK3030323000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	3	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	3	UL94 V-0	300 VDC	Through Hole
Amphenol Anytek YK3031423000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	14	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	14	UL94 V-0	300 VDC	Through Hole
Amphenol Anytek YK3032023000G	Screws with Captive Plate	PC Pin	-40 °C	115 °C	Black	Zinc	1	Thermoplastic	20	Steel	15 A	Barrier Block	0.3 in	7.62 mm	2 Wall (Dual)	14 AWG	22 AWG	20	UL94 V-0	300 VDC	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.92
		10	$ 0.65
		25	$ 0.61
		50	$ 0.55
		100	$ 0.55
		250	$ 0.46
		500	$ 0.44
		2016	$ 0.43

Description

General part information

YK303 Series

3 Circuit 0.300" (7.62mm) Barrier Block Connector Screws with Captive Plate
