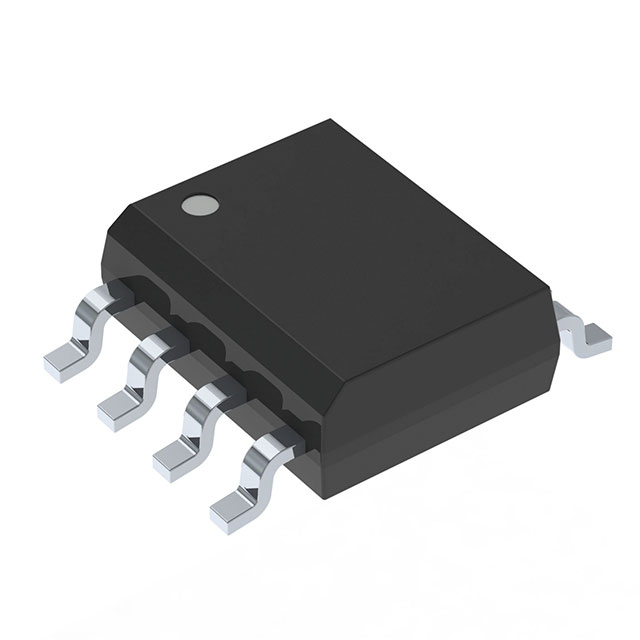

111-3013
ObsoleteInfineon Technologies
IC REG CTRLR BUCK/BOOST 8SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
111-3013
ObsoleteInfineon Technologies
IC REG CTRLR BUCK/BOOST 8SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 111-3013 |
|---|---|
| Clock Sync | False |
| Control Features | Soft Start, Enable |
| Duty Cycle (Max) [Max] | 90 % |
| Frequency - Switching | 400 kHz |
| Function | Step-Down, Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Supplier Device Package | 8-SOIC |
| Synchronous Rectifier | True |
| Topology | Boost, Buck |
| Voltage - Supply (Vcc/Vdd) [Max] | 25 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
111-3013 Series
Buck, Boost Regulator Positive Output Step-Up, Step-Down DC-DC Controller IC 8-SOIC
