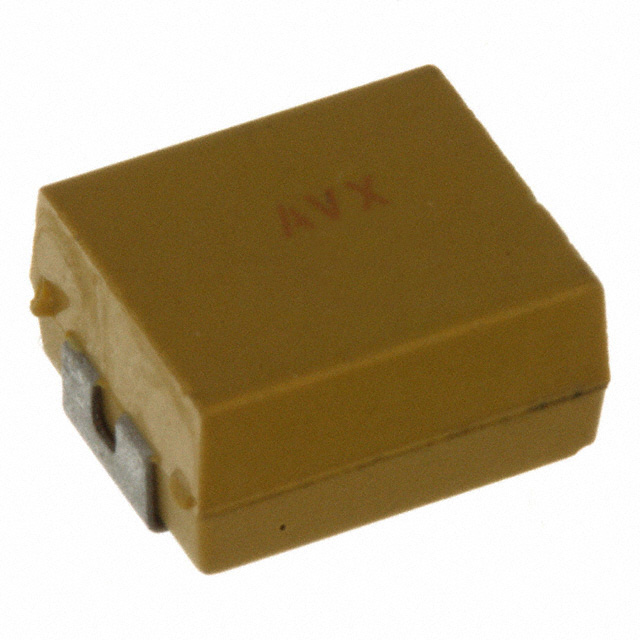

NOJV477M006RWJ

Obsolete

Kyocera AVX

CAP NIOB OXI 470UF 20% 6.3V 2924

Search across all available documentation for this part.

Obsolete

Kyocera AVX

CAP NIOB OXI 470UF 20% 6.3V 2924

Technical Specifications

Parameters and characteristics for this part

Specification	NOJV477M006RWJ

Capacitance	470 µF
Current - Leakage	56.4 µA
Dissipation Factor	12 %
ESR (Equivalent Series Resistance)	300 mOhms
Height - Seated (Max) [Max] [z]	0.148 in
Height - Seated (Max) [Max] [z]	3.75 mm
Manufacturer Size Code	V
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	2924
Package / Case	7361 Metric
Size / Dimension [x]	0.287 in
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	6.1 mm
Size / Dimension [y]	0.24 "
Supplier Device Package	7361 Metric
Supplier Device Package	2924
Tolerance	20 %
Voltage - Rated	6.3 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Supplier Device Package	Supplier Device Package	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Leakage	Mounting Type	Package / Case	Package / Case	Dissipation Factor
Kyocera AVX NOJV108M002RWJ	105 ░C	-55 °C	1000 µF	0.287 in	6.1 mm	7.3 mm	0.24 "	2.5 V	7361 Metric	2924	V	300 mOhms	20 %	0.148 in	3.75 mm	50 µA	Surface Mount	2924	7361 Metric	16 %
Kyocera AVX NOJV108M002SWJ	105 ░C	-55 °C	1000 µF	0.287 in	6.1 mm	7.3 mm	0.24 "	2.5 V	7361 Metric	2924	V	300 mOhms	20 %	0.148 in	3.75 mm	50 µA	Surface Mount	2924	7361 Metric	16 %
Kyocera AVX NOJV477M006RWJ	105 ░C	-55 °C	470 µF	0.287 in	6.1 mm	7.3 mm	0.24 "	6.3 V	7361 Metric	2924	V	300 mOhms	20 %	0.148 in	3.75 mm	56.4 µA	Surface Mount	2924	7361 Metric	12 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

470 µF Niobium Oxide Capacitor 6.3 V 2924 (7361 Metric) 300 mOhms
