A6HR-2104-R100

Active

Omron Electronics Inc-EMC Div

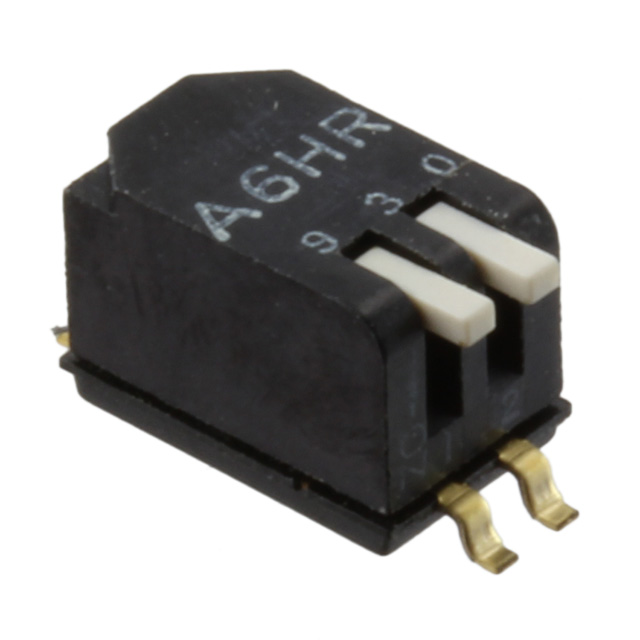

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6HR-2104-R100

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6HR-2104-R100

Actuator Level	Raised
Actuator Type	Piano
Circuit	SPST
Contact Finish	Gold
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	0.165 "
Height Above Board	4.2 mm
Length	3.67 mm
Length	0.144 "
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

A6H Series

Part	Pitch [x]	Pitch [x]	Actuator Type	Number of Positions	Actuator Level	Electrical Life	Features	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Contact Finish	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Voltage Rating	Length	Length	Length [custom]	Length [custom]	Mechanical Life	Length [x]	Length [x]	Height Above Board	Height Above Board
Omron Electronics Inc-EMC Div A6HF-6102-P	0.05 in	1.27 mm	Slide (Standard)	6	Flush Recessed	1000 Cycles	Tape Seal	Gull Wing	Surface Mount	-30 ░C	85 °C	SPST	Gold	0.091 in	2.3 mm	25 mA	24 VDC	8.75 mm	0.344 "
Omron Electronics Inc-EMC Div A6HF-4102-PM	0.05 in	1.27 mm	Slide (Standard)	4	Flush Recessed	1000 Cycles	Tape Seal	Gull Wing	Surface Mount	-30 ░C	85 °C	SPST	Gold	0.091 in	2.3 mm	25 mA	24 VDC			0.244 in	6.2 mm
Omron Electronics Inc-EMC Div A6H-4102-P	0.05 in	1.27 mm	Slide (Standard)	4	Flush Recessed	1000 Cycles	Tape Seal	Gull Wing	Surface Mount	-20 C	70 °C	SPST		0.061 "	1.55 mm	25 mA	24 VDC					1000 Cycles	6.31 mm	0.248 in
Omron Electronics Inc-EMC Div A6H-8102(VNM)	0.05 in	1.27 mm	Slide (Standard)	8	Flush Recessed	1000 Cycles	Tape Seal	Gull Wing	Surface Mount	-20 C	70 °C	SPST		0.061 "	1.55 mm	25 mA	24 VDC	11.39 mm	0.448 "			1000 Cycles
Omron Electronics Inc-EMC Div A6H-6102(VNM)	0.05 in	1.27 mm	Slide (Standard)	6	Flush Recessed	1000 Cycles	Tape Seal	Gull Wing	Surface Mount	-20 C	70 °C	SPST		0.061 "	1.55 mm	25 mA	24 VDC	8.85 mm	0.348 in			1000 Cycles
Omron Electronics Inc-EMC Div A6H-8101-PM(VNM)	0.05 in	1.27 mm	Slide (Standard)	8	Flush Recessed	1000 Cycles		Gull Wing	Surface Mount	-20 C	70 °C	SPST		0.061 "	1.55 mm	25 mA	24 VDC	11.39 mm	0.448 "			1000 Cycles
Omron Electronics Inc-EMC Div A6H-2101(VNM)	0.05 in	1.27 mm	Slide (Standard)	2	Flush Recessed	1000 Cycles		Gull Wing	Surface Mount	-20 C	70 °C	SPST		0.061 "	1.55 mm	25 mA	24 VDC	3.77 mm	0.148 "			1000 Cycles
Omron Electronics Inc-EMC Div A6HR-2104-R100	0.05 in	1.27 mm	Piano	2	Raised	1000 Cycles		Gull Wing	Surface Mount Right Angle	-30 ░C	85 °C	SPST	Gold			25 mA	24 VDC	3.67 mm	0.144 "						0.165 "	4.2 mm
Omron Electronics Inc-EMC Div A6HR-4104	0.05 in	1.27 mm	Piano	4	Raised	1000 Cycles		Gull Wing	Surface Mount Right Angle	-30 ░C	85 °C	SPST	Gold			25 mA	24 VDC			0.244 in	6.2 mm				0.165 "	4.2 mm
Omron Electronics Inc-EMC Div A6H-2102-R100(VNM)	0.05 in	1.27 mm	Slide (Standard)	2	Flush Recessed	1000 Cycles	Tape Seal	Gull Wing	Surface Mount	-20 C	70 °C	SPST		0.061 "	1.55 mm	25 mA	24 VDC	3.77 mm	0.148 "			1000 Cycles
