A99000-513

Active

Omnetics

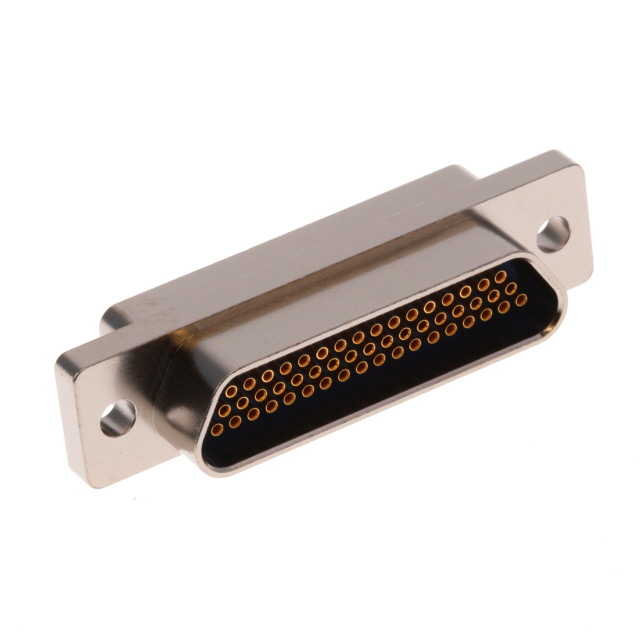

CONN MICRO-D RCPT 51POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 51POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A99000-513

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	51
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05
Shell Size, Connector Layout [custom]	0.05

Part	Contact Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Dielectric Material	Contact Finish	Current Rating (Amps)	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Contact Form	Flange Feature	Shell Material, Finish	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Omnetics A99000-513	Signal	51	50 µin	1.27 µm	Receptacle Female Sockets	Thermoplastic	Gold	3 A	D-Type Micro-D	0.05	0.05	3	Stamped	Housing/Shell (Unthreaded)	Aluminum Electroless Nickel Plated	Copper Alloy	Free Hanging (In-Line)	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

51 Position D-Type, Micro-D Receptacle, Female Sockets Connector
