OSTHI120053

Active

On Shore Technology Inc.

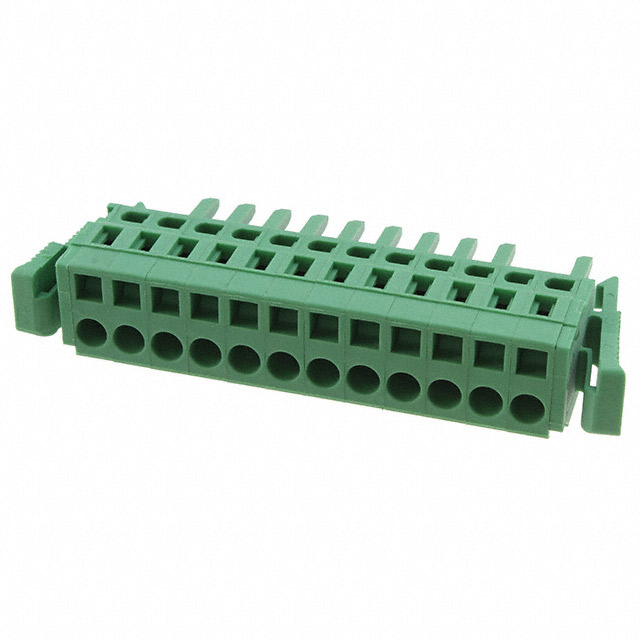

TERM BLOCK PLUG 12POS STR 5MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLOCK PLUG 12POS STR 5MM

Technical Specifications

Parameters and characteristics for this part

Specification	OSTHI120053

Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-33 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	12
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG

Part	Mounting Type	Housing Material	Voltage - UL	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Pitch [x]	Pitch [x]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Positions	Material Flammability Rating	Contact Material	Positions Per Level
On Shore Technology Inc. OSTHI120053	Free Hanging (In-Line)	Thermoplastic	300 V	1	28 AWG	12 AWG	5 mm	0.197 in	Screwless - Spring Cage Tension Clamp	105 ░C	-33 °C	Plug Female Sockets	12	UL94 V-0	Phosphor Bronze	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15	$ 6.43

General part information

12 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) Free Hanging (In-Line)
