10007290-P0200CULF
ActiveAmphenol ICC (FCI)

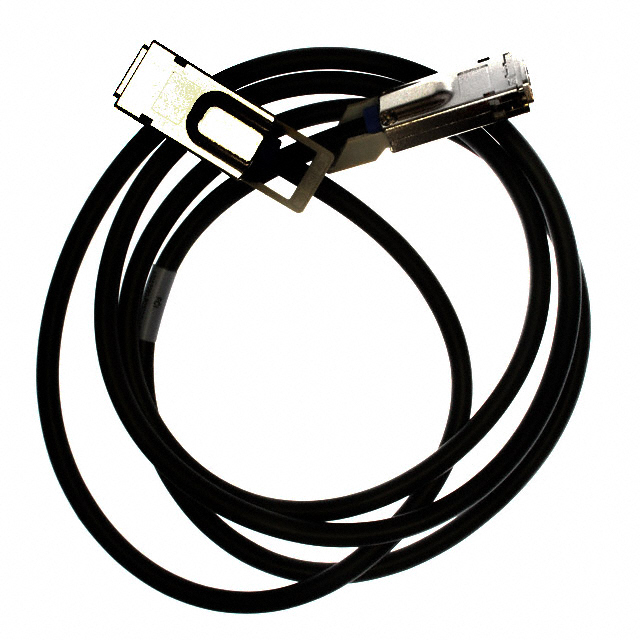

CABLE INFINIBAND 4X M-M 2M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10007290-P0200CULF
ActiveAmphenol ICC (FCI)
CABLE INFINIBAND 4X M-M 2M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10007290-P0200CULF |
|---|---|
| Cable Connectors | Infiniband 4x |
| Cable Type | Round |
| Color | Black |
| Connector Type | Plug to Plug |
| Fastening Type | Latch Lock |
| Features | Pull Tab, Unequalized |
| Frequency - Max [Max] | 2.5 Gbps |
| Gender | Male to Male |
| Length [x] | 2 m |
| Length [x] | 6.56 ft |
| Number of Positions | 16 |
| Shielding | Shielded |
| Usage | External |
| Wire Gauge | 28 AWG |
10007290 Series
| Part | Cable Type | Connector Type | Shielding | Cable Connectors | Frequency - Max [Max] | Usage | Fastening Type | Color | Wire Gauge | Number of Positions | Gender | Features | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Round | Plug to Plug | Shielded | Infiniband 4x | 2.5 Gbps | External | Latch Lock | Black | 28 AWG | 16 | Male to Male | Pull Tab Unequalized | ||||
Amphenol ICC (FCI) | Round | Plug to Plug | Shielded | Infiniband 4x | 2.5 Gbps | External | Latch Lock | Black | 28 AWG | 16 | Male to Male | Pull Tab Unequalized | 2 m | 6.56 ft | ||
Amphenol ICC (FCI) | Round | Plug to Plug | Shielded | Infiniband 4x | 2.5 Gbps | External | Latch Lock | Black | 30 AWG | 16 | Male to Male | Pull Tab Unequalized | 1 m | 3.28 ft | ||
Amphenol ICC (FCI) | Round | Plug to Plug | Shielded | Infiniband 4x | 2.5 Gbps | External | Latch Lock | Black | 30 AWG | 16 | Male to Male | Pull Tab Unequalized | ||||
Amphenol ICC (FCI) | Round | Plug to Plug | Shielded | Infiniband 4x | 2.5 Gbps | External | Latch Lock | Black | 30 AWG | 16 | Male to Male | Pull Tab Unequalized | 4.92 ' | 1.5 m | ||
Amphenol ICC (FCI) | Round | Plug to Plug | Shielded | Infiniband 4x | 2.5 Gbps | External | Latch Lock | Black | 28 AWG | 16 | Male to Male | Pull Tab Unequalized | 1 m | 3.28 ft | ||
Amphenol ICC (FCI) | Round | Plug to Plug | Shielded | Infiniband 4x | 2.5 Gbps | External | Latch Lock | Black | 30 AWG | 16 | Male to Male | Pull Tab Unequalized | 1.51 ft | 460 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10007290 Series
16 Position Infiniband 4x Plug to Plug 6.56' (2.00m) Black Shielded
Documents
Technical documentation and resources
