XB24CZ7SIT-004

Digi

RF TXRX MOD 802.15.4RPSMA TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMap Your Digi XBee IoT Network with Digi XCTU Datasheet +1

XB24CZ7SIT-004

Digi

RF TXRX MOD 802.15.4RPSMA TH

Deep-Dive with AI

DocumentsMap Your Digi XBee IoT Network with Digi XCTU Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XB24CZ7SIT-004

Antenna Type	Antenna Not Included, RP-SMA
Current - Receiving [Max]	45 mA
Current - Receiving [Min]	28 mA
Current - Transmitting [Max]	59 mA
Current - Transmitting [Min]	33 mA
Data Rate	1 Mbps
Frequency	2.4 GHz
Modulation	DSSS
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	8 dBm
Protocol	Zigbee®
RF Family/Standard	802.15.4
Sensitivity	-102 dBm
Serial Interfaces	UART, SPI
Utilized IC / Part	EM357
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

XB24CZ7 Series

Part	Package / Case	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Antenna Type	Serial Interfaces	Power - Output	Protocol	Current - Transmitting [Min]	Current - Transmitting [Max]	RF Family/Standard	Current - Receiving [Min]	Current - Receiving [Max]	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation	Frequency	Sensitivity	Memory Size
Digi XB24CZ7SIT-004	Module	EM357	85 °C	-40 °C	Through Hole	Antenna Not Included RP-SMA	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm
Digi XB24CZ7WIT-004	Module	EM357	85 °C	-40 °C	Through Hole	Integrated Wire Antenna	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm
Digi XB24CZ7UIS-004	Module	EM357	85 °C	-40 °C	Surface Mount	Antenna Not Included U.FL	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-100 dBm
Digi XB24CZ7RIS-004	Module	EM357	85 °C	-40 °C	Surface Mount	Antenna Not Included	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-100 dBm
Digi XB24CZ7SITB003	Module	EM357	85 °C	-40 °C	Through Hole	Antenna Not Included RP-SMA	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm	2 kB 32 kB
Digi XB24CZ7UIT-004	Module	EM357	85 °C	-40 °C	Through Hole	Antenna Not Included U.FL	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm
Digi XB24CZ7PITB003	Module	EM357	85 °C	-40 °C	Through Hole	Integrated Trace	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm	2 kB 32 kB
Digi XB24CZ7UISB003	Module	EM357	85 °C	-40 °C	Surface Mount	Antenna Not Included U.FL	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm	2 kB 32 kB
Digi XB24CZ7UITB003	Module	EM357	85 °C	-40 °C	Through Hole	Antenna Not Included U.FL	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm	2 kB 32 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 29.33

Description

General part information

XB24CZ7 Series

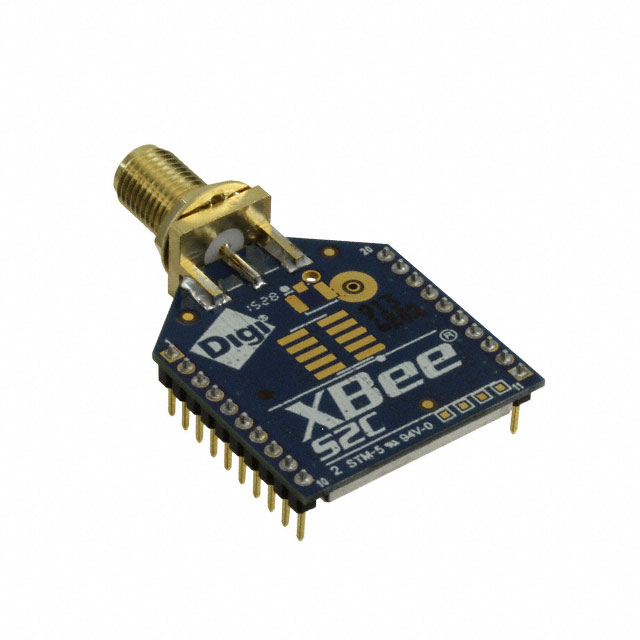

802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, RP-SMA Through Hole
