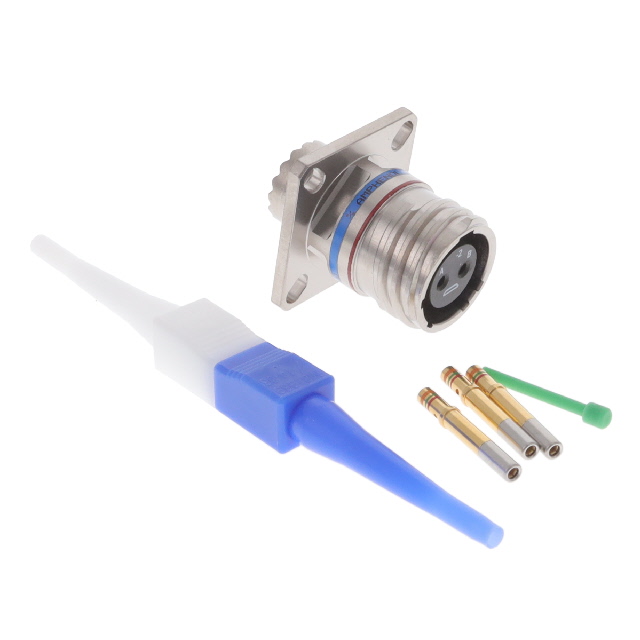

D38999/20FB2SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20FB2SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20FB2SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert	11-2
Shell Size, MIL	B
Shielding	Shielded
Termination	Crimp

D38999/20FB Series

Part	Color	Shell Material	Applications	Shell Size - Insert	Mounting Feature	Orientation	Termination	Grade	Shell Finish	Shielding	Contact Finish - Mating	Shell Size, MIL	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Qualification	Ingress Protection	Primary Material	Housing Color	Contact Type	Contact Shape	Number of Positions	Note	Contact Size	Type	Current Rating (Amps)	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Aerospace Operations D38999/20FB5HN	Silver	Aluminum	Aviation Marine Military	11-5	Flange	N	Crimp	Military	Electroless Nickel	Shielded	Gold	B	2.54 çm	100 çin	-65 ░C	200 °C	Copper Alloy	Male Pins Receptacle	MIL-DTL-38999 Series III	Environment Resistant	Metal
Amphenol Aerospace Operations D38999/20FB98AB		Aluminum		11-98	Flange	B		Military	Electroless Nickel	Shielded		B			-65 ░C	200 °C		Receptacle Housing	MIL-DTL-38999 Series III	Environment Resistant		Silver	Crimp	Circular	6	Contacts Not Included	20	For Male Pins
Amphenol Aerospace Operations D38999/20FB5PN	Silver	Aluminum	Aerospace Aviation Marine Military	11-5	Flange	N	Crimp	Military	Electroless Nickel	Shielded	Gold	B	1.27 µm	50 µin	-65 ░C	200 °C	Copper Alloy	Male Pins Receptacle	MIL-DTL-38999 Series III	Environment Resistant	Metal								7.5 A
Amphenol Aerospace Operations D38999/20FB2PN-LC		Aluminum		11-2	Flange	N		Military	Electroless Nickel	Shielded		B			-65 ░C	200 °C		Receptacle Housing	MIL-DTL-38999 Series III	Environment Resistant		Silver	Crimp	Circular	2	Contacts Not Included	16	For Male Pins
Amphenol Aerospace Operations D38999/20FB2HA	Silver	Aluminum	Aviation Marine Military	11-2	Flange	A	Crimp	Military	Electroless Nickel	Shielded	Gold	B	2.54 çm	100 çin	-65 ░C	200 °C	Copper Alloy	Male Pins Receptacle	MIL-DTL-38999 Series III	Environment Resistant	Metal				2
Amphenol Aerospace Operations D38999/20FB2SN	Silver	Aluminum	Aerospace Aviation Marine Military	11-2	Flange	N	Crimp	Military	Electroless Nickel	Shielded	Gold	B	1.27 µm	50 µin	-65 ░C	200 °C	Copper Alloy	Receptacle Female Sockets	MIL-DTL-38999 Series III	Environment Resistant	Metal				2				13 A
Amphenol Aerospace Operations D38999/20FB99PN-LC		Aluminum		11-99	Flange	N		Military	Electroless Nickel	Shielded		B			-65 ░C	200 °C		Receptacle Housing	MIL-DTL-38999 Series III	Environment Resistant		Silver	Crimp	Circular	7	Contacts Not Included	20	For Male Pins
Amphenol Aerospace Operations D38999/20FB2SA-LC		Aluminum		11-2	Flange	A		Military	Electroless Nickel	Shielded		B			-65 ░C	200 °C		Receptacle Housing	MIL-DTL-38999 Series III	Environment Resistant		Silver	Crimp	Circular	2	Contacts Not Included	16	For Female Sockets
Amphenol Aerospace Operations D38999/20FB5HA	Silver	Aluminum	Aviation Marine Military	11-5	Flange	A	Crimp	Military	Electroless Nickel	Shielded	Gold	B	2.54 çm	100 çin	-65 ░C	200 °C	Copper Alloy	Male Pins Receptacle	MIL-DTL-38999 Series III	Environment Resistant	Metal
Amphenol Aerospace Operations D38999/20FB35JA-LC		Aluminum			Flange	A		Military	Electroless Nickel	Shielded		B			-65 ░C	200 °C		Receptacle Housing	MIL-DTL-38999 Series III	Environment Resistant		Silver	Crimp	Circular	13	Contacts Not Included		For Female Sockets		22D	11	35

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.63
		10	$ 121.51
		25	$ 110.74
		50	$ 103.48
		100	$ 96.91

Description

General part information

D38999/20FB Series

2 Position Circular Connector Receptacle, Female Sockets Crimp
