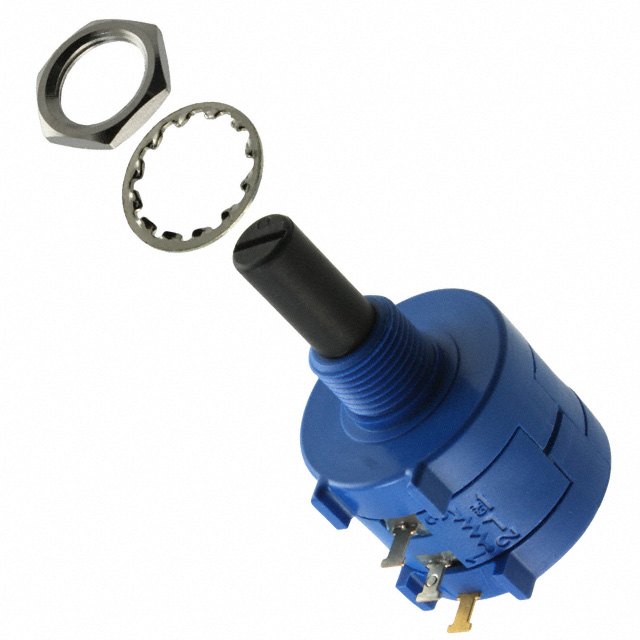

3590S-1-203L
ActiveBourns Inc.
POT 20K OHM 2W WIREWOUND LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3590S-1-203L
ActiveBourns Inc.
POT 20K OHM 2W WIREWOUND LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3590S-1-203L |
|---|---|
| Actuator Diameter [diameter] | 6.3 mm |
| Actuator Diameter [diameter] | 0.248 in |
| Actuator Length [z] | 0.812 in |
| Actuator Length [z] | 20.63 mm |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Power (Watts) | 2 W |
| Resistance (Ohms) | 20 kOhms |
| Resistive Material | Wirewound |
| Rotation | 3600 ° |
| Size - Body [diameter] | 22.23 mm |
| Size - Body [diameter] | 0.875 " |
| Taper | Linear |
| Temperature Coefficient | 50 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 5 % |
3590S Series
| Part | Size - Body [diameter] | Size - Body [diameter] | Resistive Material | Temperature Coefficient | Actuator Length [z] | Actuator Length [z] | Number of Gangs | Built in Switch | Power (Watts) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Termination Style | Bushing Thread | Adjustment Type | Tolerance | Rotation | Number of Turns | Taper | Resistance (Ohms) | Actuator Type | Features | Resistance (Ohms) | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.34 mm | 0.2497 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | 200 Ohms | Slotted | ||||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.34 mm | 0.2497 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | 1 kOhms | Slotted | ||||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.3 mm | 0.248 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | 5 kOhms | Slotted | ||||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.3 mm | 0.248 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | 50 kOhms | Slotted | ||||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.34 mm | 0.2497 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | 5 kOhms | Slotted | Sealed | |||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6 mm | 0.236 in | Solder Lug | M9 | User Defined | 5 % | 3600 ° | 10 | Linear | Slotted | Sealed | 10k | 0.375 | ||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.3 mm | 0.248 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | 20 kOhms | Slotted | ||||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.34 mm | 0.2497 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | 500 Ohms | Slotted | ||||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.34 mm | 0.2497 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | 100 kOhms | Slotted | ||||
Bourns Inc. | 22.23 mm | 0.875 " | Wirewound | 50 ppm/°C | 0.812 in | 20.63 mm | 1 | 2 W | 6.34 mm | 0.2497 in | Solder Lug | 3/8-32 | User Defined | 5 % | 3600 ° | 10 | Linear | Slotted | 10k |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.31 | |
| 10 | $ 17.82 | |||
| 25 | $ 17.08 | |||
| 50 | $ 14.85 | |||
| 100 | $ 13.37 | |||
| 250 | $ 11.51 | |||
| 500 | $ 11.14 | |||
Description
General part information
3590S Series
20k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 2W Solder Lug
