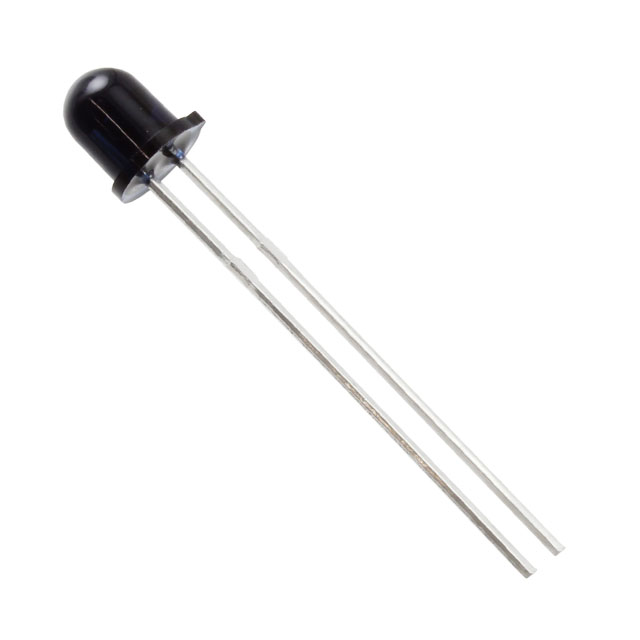

OP593A

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP VIEW TO18

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP VIEW TO18

Technical Specifications

Parameters and characteristics for this part

Specification	OP593A

Current - Collector (Ic) (Max) [Max]	50 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	TO-18-2
Power - Max [Max]	250 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	890 nm

Part	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Current - Dark (Id) (Max) [Max]	Orientation	Wavelength	Package / Case
TT Electronics/Optek Technology OP593A	250 mW	100 °C	-40 °C	50 mA	30 V	Through Hole	100 nA	Top View	890 nm	TO-18-2
TT Electronics/Optek Technology OP593B	250 mW	100 °C	-40 °C	50 mA	30 V	Through Hole	100 nA	Top View	890 nm	Radial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 890nm Top View TO-18-2
