142193-75

Active

Amphenol RF

CONN SMB PLUG R/A 75OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB PLUG R/A 75OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	142193-75

Body Finish	Nickel
Body Material	Brass
Cable Group	187, RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms

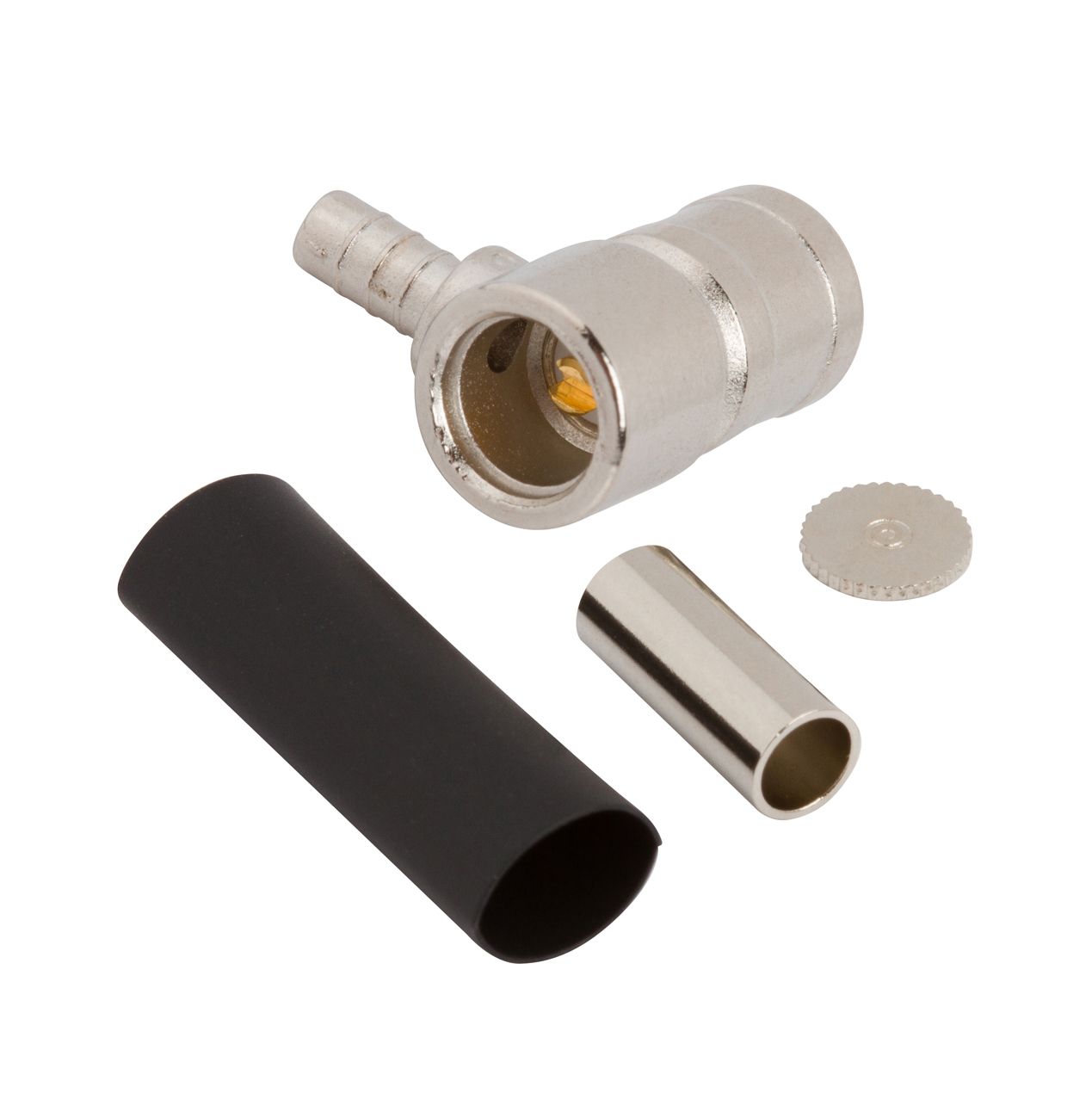

Includes	1 Heat Shrink, 1 Connector, 1 End Cap, 1 Ferrule
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Shield Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Center Contact Plating	Contact Termination	Impedance	Mounting Type	Connector Type	Number of Ports	Body Finish	Fastening Type	Voltage Rating	Housing Color	Includes	Mating Cycles	Connector Style	Dielectric Material	Insertion Loss	Body Material	Cable Group
Amphenol RF 142193-75	Crimp	Beryllium Copper	-65 ░C	165 °C	4 GHz	Gold	Solder	75 Ohms	Free Hanging (In-Line) Right Angle	Female Socket Plug	1	Nickel	Snap-On	335 V	Silver	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink	500	SMB	Polytetrafluoroethylene (PTFE)	0.6 dB	Brass	187 RG-179

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
