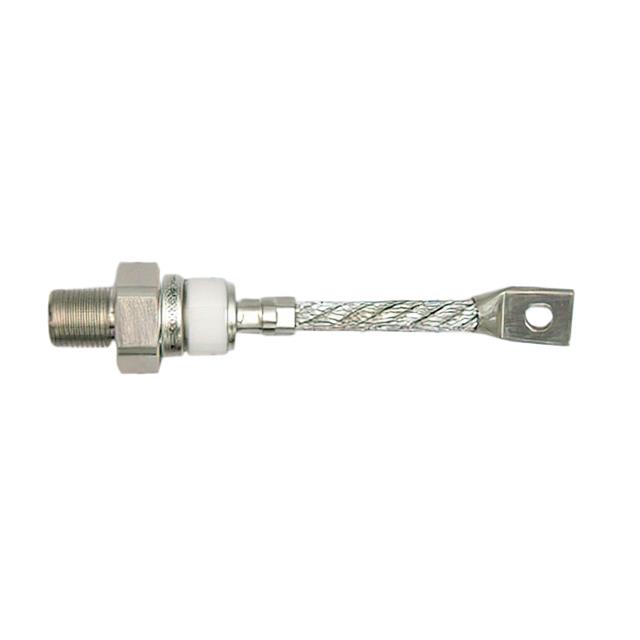

R6001030XXYA

Unknown

Powerex Inc.

DIODE STD 1000V 300A DO205AB

Search across all available documentation for this part.

Unknown

Powerex Inc.

DIODE STD 1000V 300A DO205AB

Technical Specifications

Parameters and characteristics for this part

Specification	R6001030XXYA

Current - Average Rectified (Io)	300 A
Current - Reverse Leakage @ Vr	50 mA, 50 mA
Mounting Type	Stud Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-205AB, DO-9, Stud
Reverse Recovery Time (trr)	13 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	2600 V, 1000 V
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Package / Case	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Mounting Type
Powerex Inc. R6001030XXYA	1000 V 2600 V	Standard Recovery >500ns	200 mA	DO-205AB DO-9 Stud	50 mA 50 mA	Standard	300 A	1.4 V	150 °C	-65 C	13 µs	Stud Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 2600 V 300A Stud Mount DO-205AB (DO-9)
