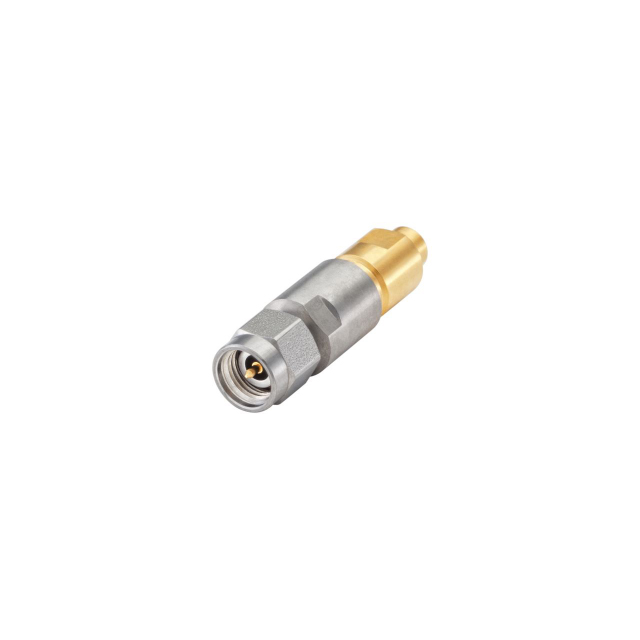

02S119-S00E3
ActiveRosenberger
PRECISION 2.92/SMP ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02S119-S00E3
ActiveRosenberger
PRECISION 2.92/SMP ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02S119-S00E3 |
|---|---|
| Adapter Series | SMP to RPC-2.92 |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert To (Adapter End) | SMP Plug, Female Socket |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Threaded, Snap-On |
| Features | Limited Detent |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 26 °C |
| Operating Temperature [Min] | 20 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 180.61 | |
| 10 | $ 167.36 | |||
| 25 | $ 161.34 | |||
| 50 | $ 160.14 | |||
Description
General part information
02S119 Series
Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To SMP Plug, Female Socket 50 Ohms
