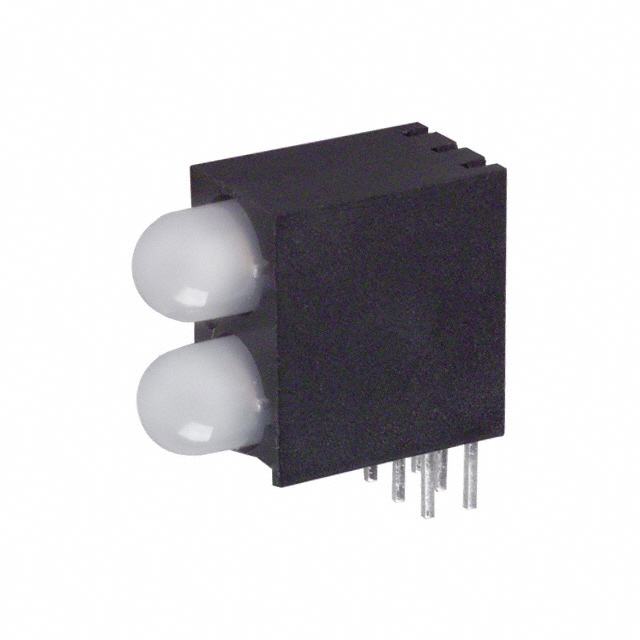

5523544F

Active

DIALIGHT

LED CBI 5MM BI-LVL GRN/YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5523544F

Active

DIALIGHT

LED CBI 5MM BI-LVL GRN/YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5523544F

Color	Green, Yellow (x 2)
Configuration	2 High
Current	10 mA
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Millicandela Rating [custom]	8 mcd
Millicandela Rating [custom]	5 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	65 °
Voltage Rating	2.1 V
Wavelength - Peak	583 nm, 565 nm

5523544 Series

Part	Wavelength - Peak	Voltage Rating	Mounting Type	Current	Viewing Angle	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Lens Size	Lens Size	Configuration
DIALIGHT 5523544F	565 nm 583 nm	2.1 V	Through Hole Right Angle	10 mA	65 °	Green Yellow (x 2)	8 mcd	5 mcd	Round with Domed Top	T-1 3/4	5 mm	2 High

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.44
		50	$ 2.43
		100	$ 2.04

Description

General part information

5523544 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Yellow (x 2) 2.1V 10mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
