M80-7043605 - M80-7043605

M80-7043605

Active
Harwin Inc.

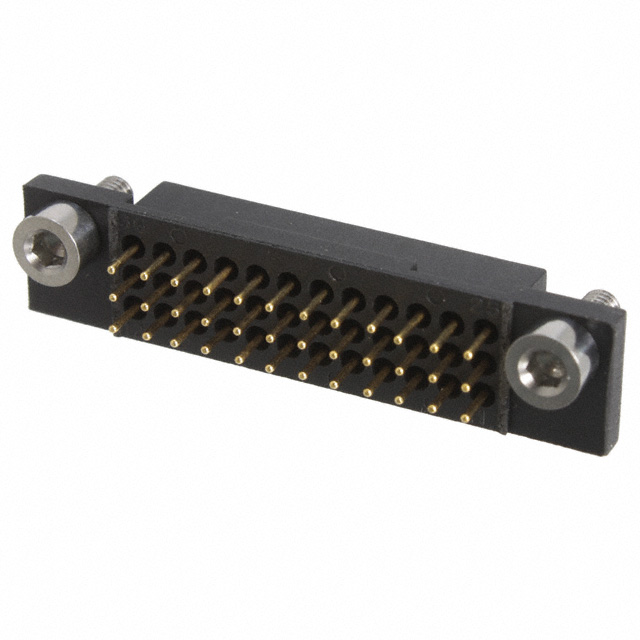

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 36 CONTACTS, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-7xx Datamate ConnectorsM80-001+4
M80-7043605 - M80-7043605

M80-7043605

Active
Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 36 CONTACTS, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsM80-7xx Datamate ConnectorsM80-001+4

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-7043605
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating12 µin
Contact Finish Thickness - Mating0.3 µm
Contact Finish Thickness - Post0.3 µm
Contact Finish Thickness - Post12 µin
Contact Length - Post0.118 in
Contact Length - Post3 mm
Contact MaterialBeryllium Copper
Contact ShapeCircular
Contact TypeFemale Socket
FeaturesMating Flange, Mounting Flange, Jackscrews
Insulation ColorBlack
Insulation Height6.28 mm
Insulation Height0.247 in
Insulation MaterialPolyamide (PA46), Nylon 4/6, Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions36
Number of Positions LoadedAll
Number of Rows3
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
StyleBoard to Board, Cable
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 30$ 24.91
LCSCPiece 1$ 48.60
210$ 19.39
510$ 18.74
990$ 18.42
NewarkEach 10$ 27.22
50$ 24.35
100$ 23.56
250$ 22.29
500$ 21.65
1000$ 21.17

Description

General part information

M80-704 Series

36 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
