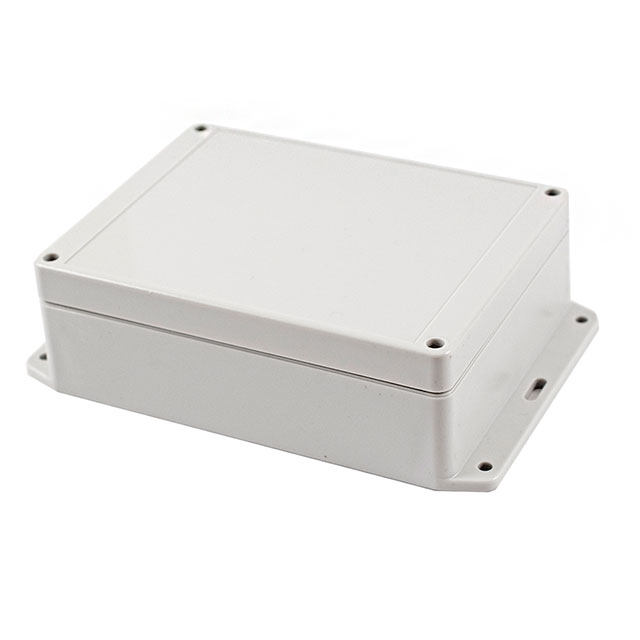

RP1230BF

Active

Hammond Manufacturing

BOX PC WHT 7.67"L X 4.94"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PC WHT 7.67"L X 4.94"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1230BF

Area (L x W)	37.8 in²
Area (L x W)	244 cm²
Color	Off, White
Container Type	Box
Design	Cover Included
Height [z]	2.17 in
Height [z]	55.12 mm
Material	Polycarbonate
Material Flammability Rating	UL94 V-2
Size / Dimension [x]	194.82 mm
Size / Dimension [x]	7.67 in
Size / Dimension [y]	4.94 in
Size / Dimension [y]	125.48 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Design	Container Type	Height [z]	Height [z]	Material Flammability Rating	Thickness	Thickness	Area (L x W)	Area (L x W)
Hammond Manufacturing RP1230C	Polycarbonate	4.94 in	6.52 in	125.48 mm	165.61 mm	Clear Cover/Door Off White	Cover Included	Box	2.17 in	55.12 mm	UL94 V-2	2.03 mm	0.08 "	32.2 in˛	208 cm˛
Hammond Manufacturing RP1230BF	Polycarbonate	4.94 in	7.67 in	125.48 mm	194.82 mm	Off White	Cover Included	Box	2.17 in	55.12 mm	UL94 V-2	2.03 mm	0.08 "	37.8 in²	244 cm²
Hammond Manufacturing RP1230BFC	Polycarbonate	4.94 in	7.67 in	125.48 mm	194.82 mm	Clear Cover/Door Off White	Cover Included	Box	2.17 in	55.12 mm	UL94 V-2	2.03 mm	0.08 "	37.8 in²	244 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Polycarbonate White, Off Cover Included 7.670" L x 4.940" W (194.82mm x 125.48mm) X 2.170" (55.12mm)

Technical documentation and resources

No documents available
