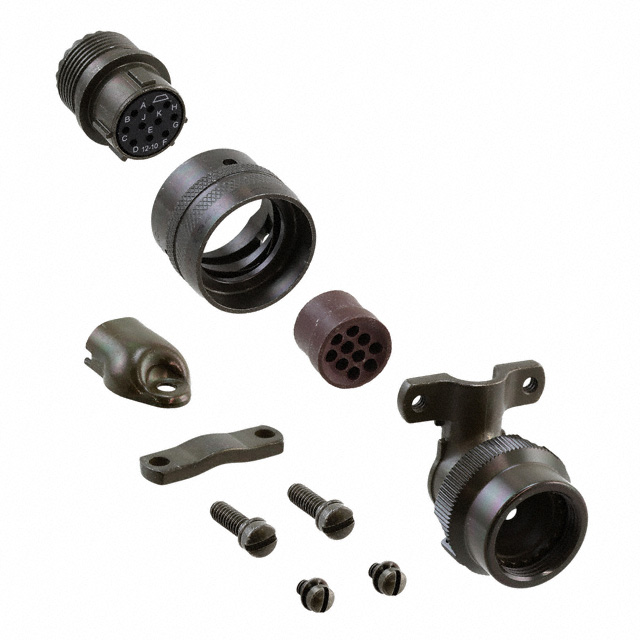

PT08E-12-10S(SR)

Active

Amphenol Industrial Operations

CONN PLUG FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT08E-12-10S(SR)

Active

Amphenol Industrial Operations

CONN PLUG FMALE 10P SOLDER CUP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT08E-12-10S(SR)

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Cable Clamp, Strain Relief, Coupling Nut
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shielding	Unshielded

PT08E Series

Part	Backshell Material, Plating	Applications	Shielding	Insert Material	Color	Mounting Type	Shell Finish	Orientation	Shell Size - Insert	Ingress Protection	Contact Material	Primary Material	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Contact Finish - Mating	Number of Positions	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Features
Amphenol Industrial Operations PT08E10-6SW-SR	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	W	10-6	Environment Resistant	Copper Alloy	Metal	Bayonet Lock	Female Sockets Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold	6	Aluminum
Amphenol Industrial Operations PT08E-22-36S(152)		Aerospace Industrial Instrumentation Mass Transit Military	Unshielded	Neoprene		Free Hanging (In-Line) Right Angle		N		Environment Sealed	Copper Alloy		Bayonet Lock	Female Sockets Plug	-55 °C	125 °C	MIL-DTL-26482 Series I		36		22	36	Coupling Nut
Amphenol Industrial Operations PT08E-12-3SY(SR)		Aerospace Industrial Instrumentation Mass Transit Military	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Y	12-3	Environment Sealed	Copper Alloy	Metal	Bayonet Lock	Female Sockets Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold		Aluminum			Cable Clamp Coupling Nut Strain Relief
Amphenol Industrial Operations PT08E-12-10S(SR)	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N		Environment Sealed	Copper Alloy	Metal	Bayonet Lock	Female Sockets Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold	10	Aluminum			Cable Clamp Coupling Nut Strain Relief
Amphenol Industrial Operations PT08E8-2S-SR	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	8-2	Environment Resistant	Copper Alloy	Metal	Bayonet Lock	Female Sockets Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold	2	Aluminum
Amphenol Industrial Operations PT08E10-2P-SR	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	10-2	Environment Resistant	Copper Alloy	Metal	Bayonet Lock	Male Pins Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold	2	Aluminum
Amphenol Industrial Operations PT08E-14-18S(SR)	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N		Environment Sealed	Copper Alloy	Metal	Bayonet Lock	Female Sockets Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold	18	Aluminum	14	18	Cable Clamp Coupling Nut Strain Relief
Amphenol Industrial Operations PT08E-10-6P(SR)	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	10-6	Environment Sealed	Copper Alloy	Metal	Bayonet Lock	Male Pins Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold	6	Aluminum			Cable Clamp Coupling Nut Strain Relief
Amphenol Industrial Operations PT08E-24-61P(SR)	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N		Environment Sealed	Copper Alloy	Metal	Bayonet Lock	Male Pins Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold	61	Aluminum	24	61	Cable Clamp Coupling Nut Strain Relief
Amphenol Industrial Operations PT08E-8-4S(SR)	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	Unshielded	Neoprene	Olive Drab	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	N	8-4	Environment Sealed	Copper Alloy	Metal	Bayonet Lock	Female Sockets Plug	-55 °C	125 °C	MIL-DTL-26482 Series I	Gold	4	Aluminum			Cable Clamp Coupling Nut Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 105.66
		10	$ 82.25
		25	$ 74.85
		50	$ 69.85
		100	$ 65.34

Description

General part information

PT08E Series

10 Position Circular Connector Plug, Female Sockets Solder Cup
