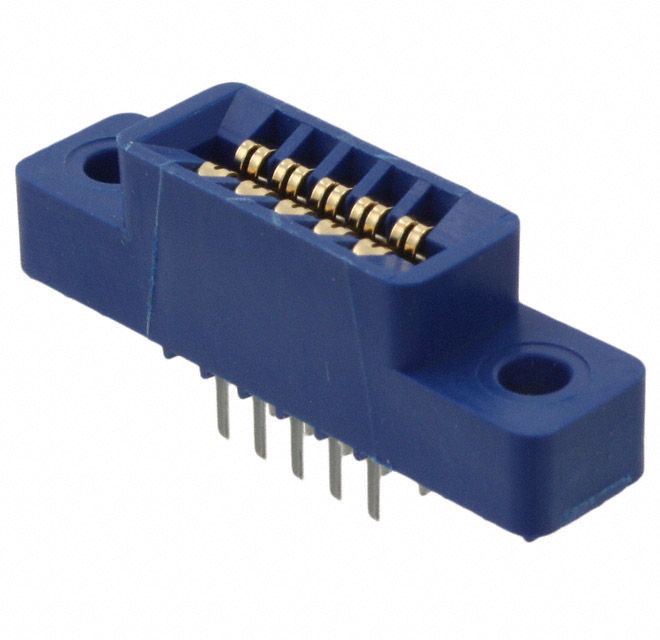

EBC05DRTS
ActiveSullins Connector Solutions
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
EBC05DRTS
ActiveSullins Connector Solutions
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBC05DRTS |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Blue |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Phosphor Bronze |
| Contact Type | Full Bellows |
| Flange Feature | Unthreaded, Side Mount Opening |
| Flange Feature [diameter] | 0.125 in |
| Flange Feature [diameter] | 3.18 mm |
| Gender | Female |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
EBC05 Series
| Part | Number of Rows | Card Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Material - Insulation | Number of Positions | Contact Finish | Features | Mounting Type | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Termination | Gender | Read Out | Flange Feature | Flange Feature | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 2 | Fits Female Edgecards | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Card Extender | Board Edge Straddle Mount | 5 | 2.54 mm | 0.1 in | Solder | Male | Dual | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | 125 °C | -65 ░C | ||||
Sullins Connector Solutions | 2 | Non Specified - Dual Edge | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Through Hole | 5 | 2.54 mm | 0.1 in | Solder | Female | Dual | 125 °C | -65 ░C | Cantilever | |||||||
Sullins Connector Solutions | 2 | Non Specified - Dual Edge | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.093 in | 2.36 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Through Hole | 5 | 2.54 mm | 0.1 in | Solder | Female | Dual | Top Mount Opening Unthreaded | 125 °C | -65 ░C | Full Bellows | Blue | 0.125 in | 3.18 mm | |||
Sullins Connector Solutions | 2 | Non Specified - Dual Edge | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Through Hole | 5 | 2.54 mm | 0.1 in | Solder | Female | Dual | Top Mount Opening Unthreaded | 125 °C | -65 ░C | Full Bellows | Blue | 0.125 in | 3.18 mm | |||
Sullins Connector Solutions | 2 | Fits Female Edgecards | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Through Hole Right Angle | 5 | 2.54 mm | 0.1 in | Solder | Male | Dual | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | 125 °C | -65 ░C | |||||
Sullins Connector Solutions | 2 | Fits Female Edgecards | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Through Hole Right Angle | 5 | 2.54 mm | 0.1 in | Solder | Male | Dual | 125 °C | -65 ░C | ||||||||
Sullins Connector Solutions | 2 | Non Specified - Dual Edge | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Through Hole | 5 | 2.54 mm | 0.1 in | Solder | Female | Dual | Side Mount Opening Unthreaded | 125 °C | -65 ░C | Full Bellows | Blue | 0.125 in | 3.18 mm | |||
Sullins Connector Solutions | 2 | Fits Female Edgecards | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Through Hole | 5 | 2.54 mm | 0.1 in | Wire Wrap | Male | Dual | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | 125 °C | -65 ░C | |||||
Sullins Connector Solutions | 2 | Non Specified - Dual Edge | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | 10 | Gold | Through Hole | 5 | 2.54 mm | 0.1 in | Solder | Female | Dual | 125 °C | -65 ░C | Full Bellows | Blue | ||||||
Sullins Connector Solutions | 1 | Non Specified - Dual Edge | Phosphor Bronze | 10 Áin | 0.25 Ám | 0.062 in | 1.57 mm | Polybutylene Terephthalate (PBT) | Gold | Through Hole | 2.54 mm | 0.1 in | Solder | Female | Single | Top Mount Opening Unthreaded | 125 °C | -65 ░C | Cantilever | 0.125 in | 3.18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 2.96 | |
Description
General part information
EBC05 Series
10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Blue
