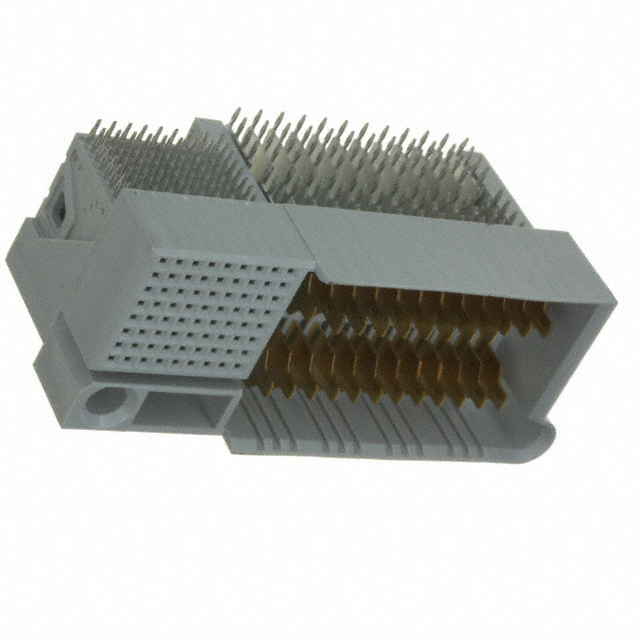

47-100011

Active

Amphenol CONEC

CONN HEADER MTCA 96POS PCB

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN HEADER MTCA 96POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	47-100011

Color	Gray
Connector Style	MicroTCA™
Connector Type	Header, Male Pins and Blades
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	24
Contact Layout, Typical [custom]	72
Features	Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	96
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit

Part	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Features	Connector Style	Mounting Type	Color	Material Flammability Rating	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions Loaded	Connector Type	Termination	Connector Usage	Number of Positions	Contact Finish
Amphenol CONEC 47-100001	0.76 Ám	30 Áin	105 ░C	-55 °C	Guide Pin	MicroTCA™	Through Hole	Gray	UL94 V-0	24	72	All	Header Male Pins and Blades	Press-Fit	Backplane	96	Gold
Amphenol CONEC 47-100011	0.76 Ám	30 Áin	105 ░C	-55 °C	Mating Guide	MicroTCA™	Through Hole Right Angle	Gray	UL94 V-0	24	72	All	Header Male Pins and Blades	Press-Fit	Backplane	96	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 29.11

General part information

96 Connector Header, Male Pins and Blades Through Hole, Right Angle Gray MicroTCA™

Technical documentation and resources

No documents available
