C091 31C012 100 2

Active

Amphenol Tuchel Industrial

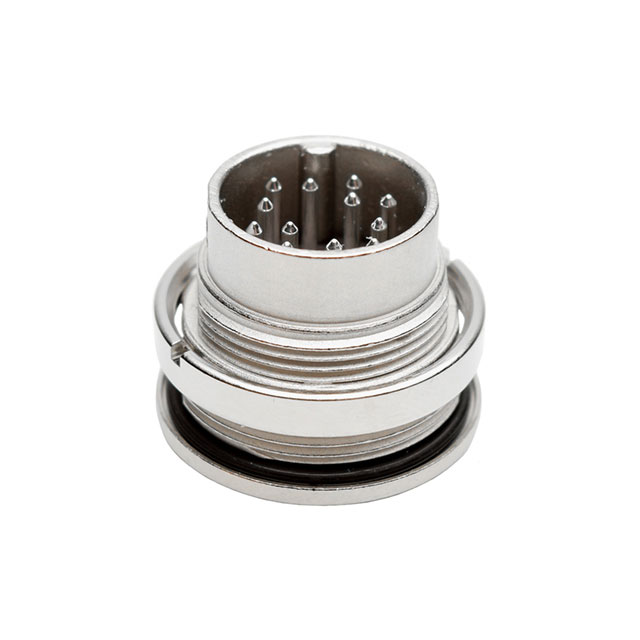

CONN RCPT MALE 12P SILVER SOLDER

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT MALE 12P SILVER SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Orientation	Contact Finish - Mating	Ingress Protection	Shell Size - Insert	Termination	Primary Material	Voltage Rating	Color	Connector Type	Number of Positions	Shell Material	Shielding	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C091 31C012 100 2	3 A	Keyed	Silver	IP65 IP67 IP69K	M16-12	Solder	Metal	250 VDC	Silver	Male Pins Receptacle	12	Die Cast	Shielded	Nickel	100 °C	-40 °C
Amphenol Tuchel Industrial C091 31C012 200 2	3 A	Keyed	Gold	IP65 IP67 IP69K	M16-12	Solder	Metal	250 VDC	Silver	Male Pins Receptacle	12	Die Cast	Shielded	Nickel	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 11.91

General part information

12 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources
