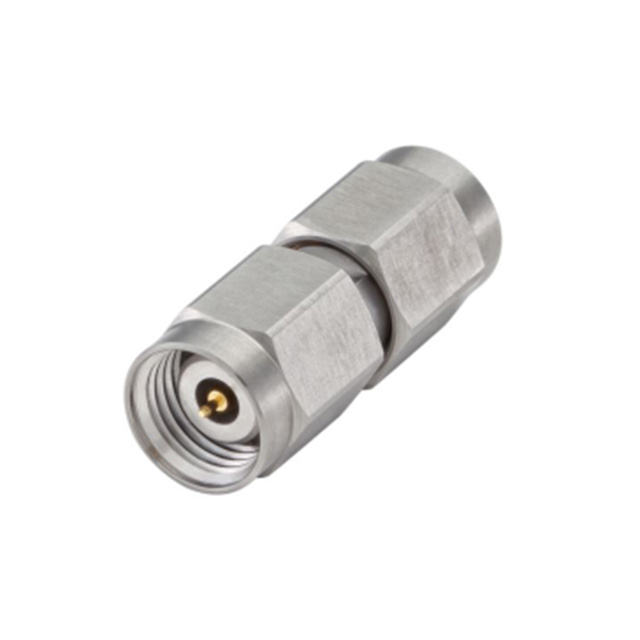

09S121-S00S3
ActiveRosenberger
ADAPT 2.40MM PLUG - 2.40MM PLUG
Deep-Dive with AI
Search across all available documentation for this part.
09S121-S00S3
ActiveRosenberger
ADAPT 2.40MM PLUG - 2.40MM PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09S121-S00S3 |
|---|---|
| Adapter Series | RPC-2.40 |
| Adapter Type | Plug to Plug |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 2.4 mm |
| Convert To (Adapter End) | 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Frequency - Max [Max] | 50 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
09S121 Series
| Part | For Use With/Related Products | Specifications | Accessory Type | Type | Body Material | Style | Convert From (Adapter End) | Frequency - Max [Max] | Center Contact Material | Adapter Type | Center Gender | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Impedance | Mating Cycles | Adapter Series | Conversion Type | Convert To (Adapter End) | Center Contact Plating | Shield Termination | Housing Color | Voltage Rating | Connector Type | Connector Style | Connector Style | Connector Style | Number of Ports | Contact Termination | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rosenberger | Network Analyzer | 2.40 Jack Plug | Calibration Adapter | Specialized | |||||||||||||||||||||||||||
Rosenberger | Stainless Steel | Straight | 2.4 mm | 50 GHz | Beryllium Copper | Plug to Plug | Male to Male | Polyetheretherketone (PEEK) | 85 °C | -40 °C | Free Hanging (In-Line) | 50 Ohms | 500 | RPC-2.40 | Same Series | 2.4mm (APC-2.4 OS-50) Plug Male Pin | Gold | ||||||||||||||
Rosenberger | Stainless Steel | 50 GHz | Beryllium Copper | Polyetheretherketone (PEEK) | 85 °C | -40 °C | Free Hanging (In-Line) | 50 Ohms | 500 | Gold | Solder | Silver | 150 VDC | Male Pin Plug | OS-50 | 2.4 mm | APC-2.4 | 1 | Solder | ||||||||||||
Rosenberger | Network Analyzer | 2.40 Plug Plug | Calibration Adapter | Specialized | |||||||||||||||||||||||||||
Rosenberger | Stainless Steel | Straight | 2.4 mm | 50 GHz | Beryllium Copper | Plug to Jack | Polyetheretherketone (PEEK) | 85 °C | -40 °C | Free Hanging (In-Line) | 50 Ohms | 500 | RPC-2.40 | Same Series | 2.4mm (APC-2.4 OS-50) Plug Male Pin | Gold | 0.35 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 5 | $ 418.05 | |
Description
General part information
09S121 Series
Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
