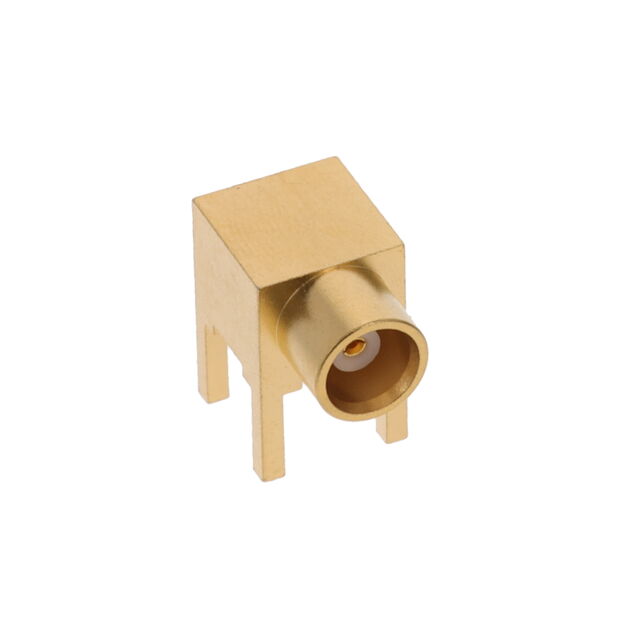

133-3711-321

Active

Cinch Connectivity Solutions Johnson

CONN MCX JACK R/A 50OHM SMD

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

CONN MCX JACK R/A 50OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	133-3711-321

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Housing Color	Body Material	Connector Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Impedance	Center Contact Material	Connector Style	Dielectric Material	Shield Termination	Center Contact Plating	Mating Cycles	Mounting Type	Body Finish	Number of Ports
Cinch Connectivity Solutions Johnson 133-3711-321	Gold	Brass	Female Socket Jack	6000 MHz	-65 ░C	165 °C	Solder	50 Ohms	Beryllium Copper	MCX	Polytetrafluoroethylene (PTFE)	Solder	Gold	500	Through Hole Right Angle	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
