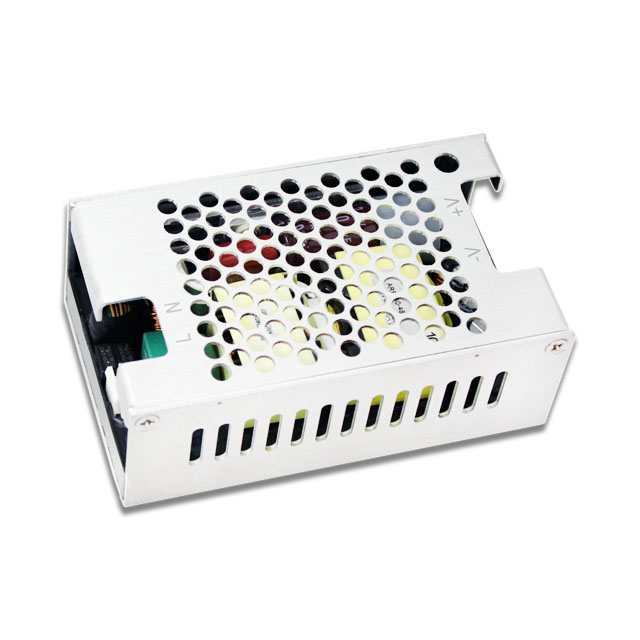

ARF240E-24S

Active

ARCH Electronics Corp

AC/DC CONVERTER 24V 240W

Search across all available documentation for this part.

Active

ARCH Electronics Corp

AC/DC CONVERTER 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	ARF240E-24S

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	10 A
Efficiency	93 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-30 °C
Power (Watts)	240 W
Size / Dimension [x]	4.1 "
Size / Dimension [x]	104.1 mm
Size / Dimension [y]	2.46 "
Size / Dimension [y]	62.5 mm
Size / Dimension [z]	39.1 mm
Size / Dimension [z]	1.54 "
Standard Number	60950-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Standard Number	Approval Agency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Power (Watts)	Efficiency	Number of Outputs	Voltage - Isolation	Applications	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Minimum Load Required
ARCH Electronics Corp ARF240E-24S	60950-1 62368-1	CB CE cURus	24 V	39.1 mm	2.46 "	4.1 "	62.5 mm	104.1 mm	1.54 "	Adjustable Output PFC Universal Input	-30 °C	80 ¯C	Enclosed	240 W	93 %	1	4000 V	ITE (Commercial)	10 A	90 VAC	264 VAC	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
