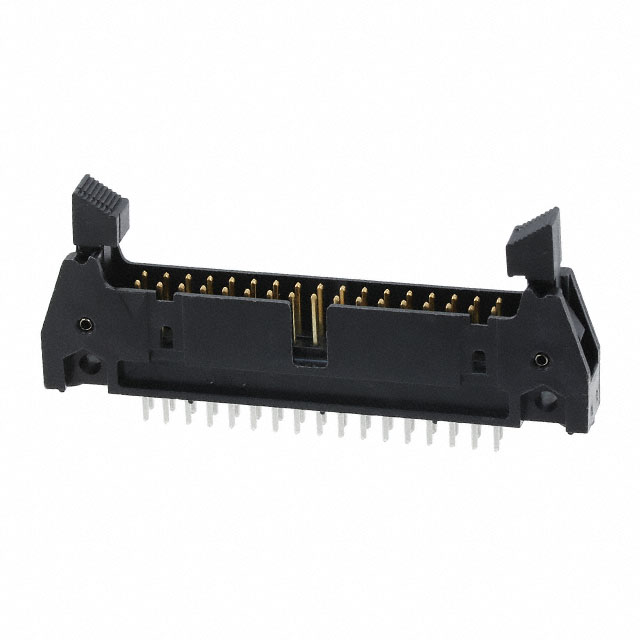

N3431-6203RB

Active

3M (TC)

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N3431-6203RB

Active

3M (TC)

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3431-6203RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Color	Black
Insulation Height	17.27 mm
Insulation Height	0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.695 in
Overall Contact Length	17.65 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N3431 Series

Part	Fastening Type	Shrouding	Contact Finish - Post	Connector Type	Contact Shape	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating [x]	Style	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Number of Positions Loaded	Termination	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Material	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
3M (TC) N3431-1203RB	Latch Lock/Eject Hooks Short	Shrouded - 3 Wall	Tin	Header	Square	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	3.94 mm	0.155 "	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.31 in	7.87 mm	2.54 mm	0.1 in	Through Hole Right Angle	All	Solder	1.75 A	34	UL94 V-0	200 µin	5.08 µm	2	0.1 in	2.54 mm	Copper Alloy
3M (TC) N3431-6003RB	Push-Pull	Shrouded - 4 Wall	Tin	Header	Square	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	3.94 mm	0.155 "	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.68 in	17.27 mm	2.54 mm	0.1 in	Through Hole	All	Solder	1.75 A	34	UL94 V-0	200 µin	5.08 µm	2	0.1 in	2.54 mm	Copper Alloy	0.695 in	17.65 mm
3M (TC) N3431-6203RB	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	Tin	Header	Square	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	3.94 mm	0.155 "	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.68 in	17.27 mm	2.54 mm	0.1 in	Through Hole	All	Solder	1.75 A	34	UL94 V-0	200 µin	5.08 µm	2	0.1 in	2.54 mm	Copper Alloy	0.695 in	17.65 mm
3M (TC) N3431-2202RB	Latch Lock/Eject Hooks Short	Shrouded - 3 Wall	Tin	Header	Square	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	2.84 mm	0.112 in	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.68 in	17.27 mm	2.54 mm	0.1 in	Through Hole	All	Solder	1.75 A	34	UL94 V-0	200 µin	5.08 µm	2	0.1 in	2.54 mm	Copper Alloy	0.652 in	16.56 mm
3M (TC) N3431-3005EB	Push-Pull	Shrouded - 3 Wall		Header	Square	Black	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Gold	15.49 mm	0.61 in	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.34 in	8.64 mm	2.54 mm	0.1 in	Through Hole Right Angle	All	Wire Wrap	1.75 A	34	UL94 V-0			2	0.1 in	2.54 mm	Phosphor Bronze
3M (TC) N3431-2302RB	Latch Lock/Eject Hooks Long	Shrouded - 3 Wall	Tin	Header	Square	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	2.84 mm	0.112 in	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.68 in	17.27 mm	2.54 mm	0.1 in	Through Hole	All	Solder	1.75 A	34	UL94 V-0	200 µin	5.08 µm	2	0.1 in	2.54 mm	Copper Alloy	0.652 in	16.56 mm
3M (TC) N3431-CES80148-RB
3M (TC) N3431-2303RB	Latch Lock/Eject Hooks Long	Shrouded - 3 Wall	Tin	Header	Square	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	3.94 mm	0.155 "	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.68 in	17.27 mm	2.54 mm	0.1 in	Through Hole	All	Solder	1.75 A	34	UL94 V-0	200 µin	5.08 µm	2	0.1 in	2.54 mm	Copper Alloy	0.695 in	17.65 mm
3M (TC) N3431-600T02RB	Push-Pull	Shrouded - 4 Wall	Tin	Header	Square	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	30 Áin	0.76 Ám	Gold	4.45 mm	0.175 in	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.68 in	17.27 mm	2.54 mm	0.1 in	Through Hole	All	Press-Fit Solder	1.75 A	34	UL94 V-0	300 µin	7.62 µm	2	0.1 in	2.54 mm	Copper Alloy			0.715 "	18.16 mm
3M (TC) N3431-5302	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall	Tin-Lead	Header	Square	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	2.84 mm	0.112 in	105 ░C	-55 °C	6.1 mm	0.24 in	Board to Board Cable	Male Pin	0.34 in	8.64 mm	2.54 mm	0.1 in	Through Hole Right Angle	All	Solder	1.75 A	34	UL94 V-0	200 µin	5.08 µm	2	0.1 in	2.54 mm	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.90
		10	$ 5.29
		100	$ 4.10
		500	$ 3.47
		1000	$ 3.25

Description

General part information

N3431 Series

Connector Header Through Hole 34 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
