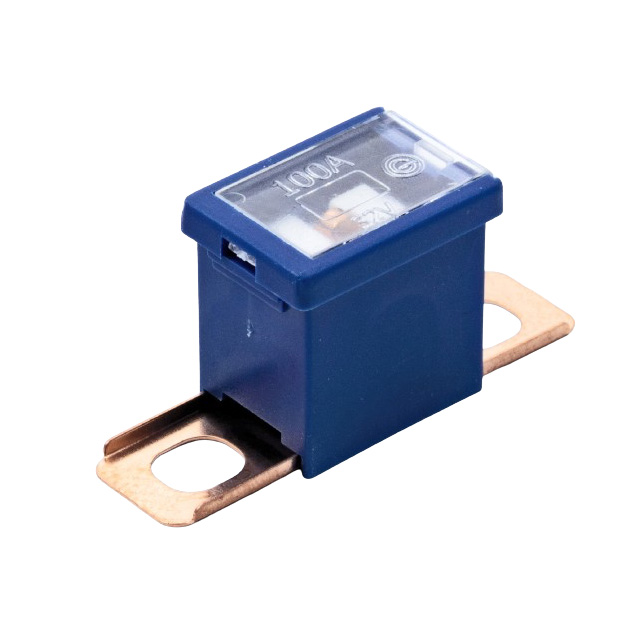

TFLD-100A

Active

OptiFuse

32V 5KA 100A AUTOMOTIVE FUSES ROHS

Search across all available documentation for this part.

Active

OptiFuse

32V 5KA 100A AUTOMOTIVE FUSES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	TFLD-100A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Blue
Current Rating (Amps)	100 A
Fuse Type	Automotive
Mounting Type	Bolt Mount
Package / Case	Auto Link
Response Time	Fast Blow
Size / Dimension [x]	0.898 in
Size / Dimension [x]	22.8 mm
Size / Dimension [y]	0.638 "
Size / Dimension [y]	16.2 mm
Size / Dimension [z]	0.846 in
Size / Dimension [z]	21.5 mm
Voltage Rating - AC	32 V
Voltage Rating - DC	32 V

Part	Fuse Type	Current Rating (Amps)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Breaking Capacity @ Rated Voltage	Response Time	Approval Agency	Voltage Rating - DC	Color	Package / Case	Voltage Rating - AC
OptiFuse TFLD-100A	Automotive	100 A	Bolt Mount	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	1 kA	Fast Blow	ISO SAE	32 V	Blue	Auto Link	32 V
OptiFuse TFLD-30A	Automotive	30 A	Bolt Mount	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	1 kA	Fast Blow	ISO SAE	32 V	Pink	Auto Link	32 V
OptiFuse TFLD-50A	Automotive	50 A	Bolt Mount	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	1 kA	Fast Blow	ISO SAE	32 V	Red	Auto Link	32 V
OptiFuse TFLD-40A	Automotive	40 A	Bolt Mount	0.898 in	0.638 "	16.2 mm	0.846 in	22.8 mm	21.5 mm	1 kA	Fast Blow	ISO SAE	32 V	Green	Auto Link	32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 A 32 V AC 32 V DC Fuse Automotive Bolt Mount Auto Link
