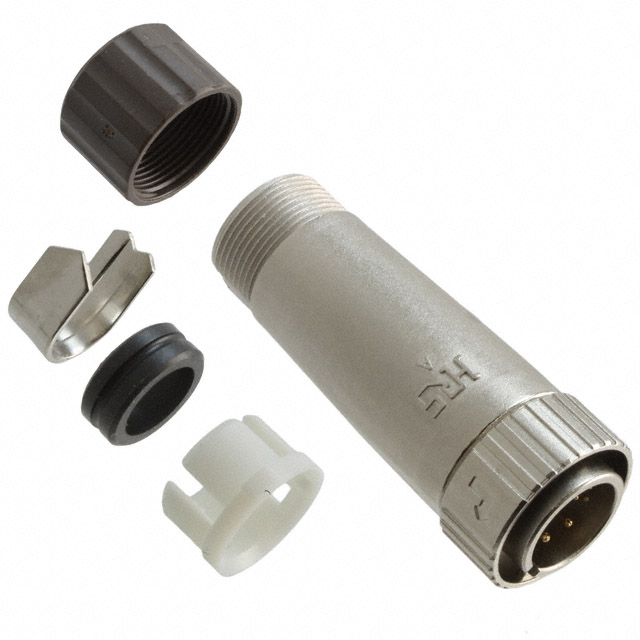

LF13WBP-20P

Active

Hirose Electric USA, Inc.

CONN PLUG MALE 20P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG MALE 20P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	LF13WBP-20P

Applications	Telecommunications, Industrial
Backshell Material, Plating	Nickel, Zinc Alloy
Color	Brown, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Clamp, Coupling Nut
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	13
Shielding	Shielded
Voltage Rating	30 VAC, 42 VDC

Part	Applications	Material Flammability Rating	Color	Ingress Protection	Current Rating (Amps)	Shell Size - Insert	Number of Positions	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Finish	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Orientation	Shielding	Contact Finish - Mating	Fastening Type	Contact Material	Shell Material	Primary Material	Backshell Material, Plating	Connector Type
Hirose Electric USA, Inc. LF13WBP-20P	Industrial Telecommunications	UL94 V-0	Brown Silver	IP67/IP68 - Dust Tight Waterproof	2 A	13	20	30 VAC 42 VDC	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	Nickel	Backshell Clamp Coupling Nut Strain Relief	0.203 Ám	8 Áin	Free Hanging (In-Line)	Keyed	Shielded	Gold	Bayonet Lock	Copper Alloy	Zinc Alloy	Metal	Nickel Zinc Alloy	Male Pins Plug
Hirose Electric USA, Inc. LF13WBP-11S	Industrial Telecommunications	UL94 V-0	Brown Silver	IP67/IP68 - Dust Tight Waterproof	2 A 10 A	13	11		-25 °C	85 °C	Polyphenylene Sulfide (PPS)	Nickel	Backshell Clamp Coupling Nut Strain Relief	0.203 Ám	8 Áin	Free Hanging (In-Line)	Keyed	Shielded	Gold	Bayonet Lock	Copper Alloy	Zinc Alloy	Metal	Nickel Zinc Alloy	Female Sockets Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Circular Connector Plug, Male Pins Solder Cup
