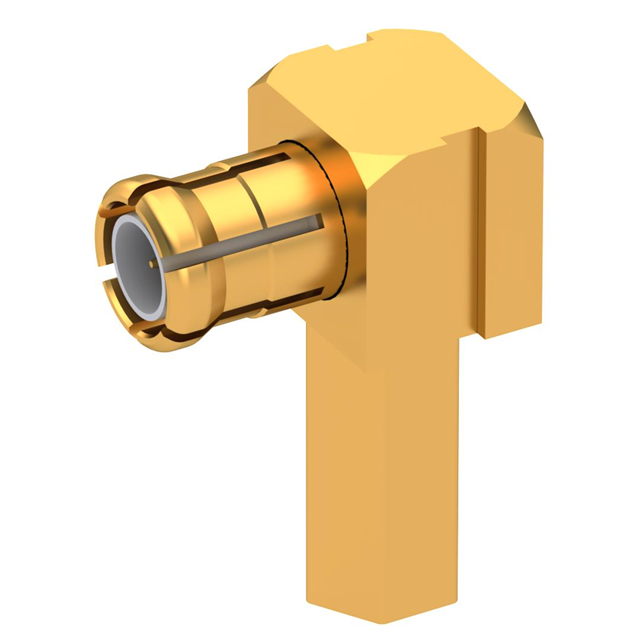

8955-1521-003

Active

Radiall USA, Inc.

MCX M RA NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX M RA NA CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	8955-1521-003

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp

Part	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Mounting Type	Number of Ports	Center Contact Plating	Mating Cycles	Body Finish	Connector Type	Shield Termination	Dielectric Material	Frequency - Max [Max]	Housing Color	Contact Termination	Fastening Type	Body Material	Connector Style	Cable Group
Radiall USA, Inc. 8955-1521-003	Brass	155 °C	-55 °C	50 Ohms	Free Hanging (In-Line) Right Angle	1	Gold	500	Gold	Male Pin Plug	Crimp	Polytetrafluoroethylene (PTFE)	6000 MHz	Gold	Crimp	Snap-On	Beryllium Copper Brass	MCX	316 RG-174

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp

Technical documentation and resources

No documents available
