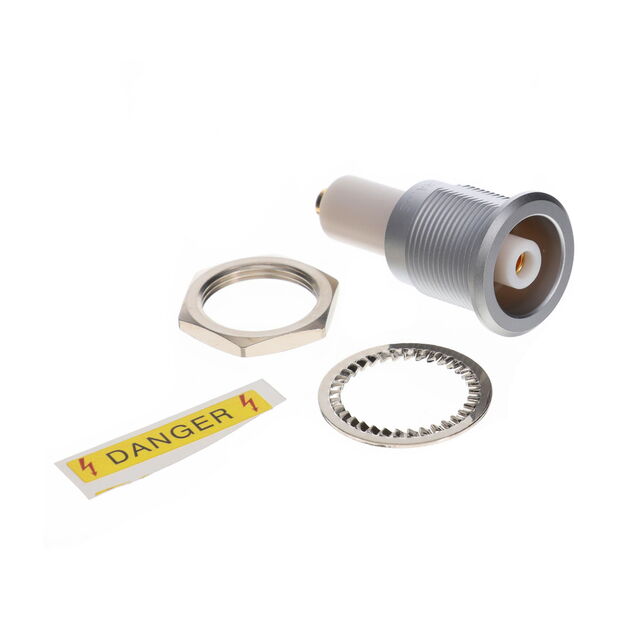

ERA.3S.405.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.3S.405.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERA.3S.405.CTL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Bronze
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	405
Shielding	Shielded

ERA.3S Series

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Current Rating (Amps)	Shielding	Shell Finish	Primary Material	Insert Material	Color	Mounting Feature	Contact Finish - Mating	Number of Positions	Connector Type	Shell Size - Insert	Ingress Protection	Material Flammability Rating	Fastening Type	Shell Material	Contact Termination	Center Contact Material	Impedance	Housing Color	Dielectric Material	Body Finish	Body Material	Includes	Mating Cycles	Connector Style	Shield Termination	Cable Group	Center Contact Plating	Number of Ports
LEMO ERA.3S.318.CLL	Brass Bronze	-55 °C	250 °C	Keyed	6 A	Shielded	Chrome	Metal	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	18	Female Sockets Male Pins Receptacle	318	IP50	UL94 V-0	Push-Pull	Brass
LEMO ERA.3S.302.CLL	Brass Bronze	-55 °C	250 °C	Keyed	23 A	Shielded	Chrome	Metal	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	2	Female Sockets Male Pins Receptacle	302	IP50	UL94 V-0	Push-Pull	Brass
LEMO ERA.3S.405.CTL	Bronze	-55 °C	250 °C	Keyed	8 A	Shielded	Chrome	Metal	Polytetrafluoroethylene (PTFE)	Silver	Bulkhead - Rear Side Nut	Gold	1	Receptacle Female Sockets	405	IP50		Push-Pull	Brass
LEMO ERA.3S.305.CLL	Brass Bronze	-55 °C	250 °C	Keyed	14 A 18 A	Shielded	Chrome	Metal	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold		Female Sockets Male Pins Receptacle	305	IP50	UL94 V-0	Push-Pull	Brass
LEMO ERA.3S.312.CLL	Brass Bronze	-55 °C	250 °C	Keyed	8 A	Shielded	Chrome	Metal	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	12	Female Sockets Male Pins Receptacle	312	IP50	UL94 V-0	Push-Pull	Brass
LEMO ERA.3S.306.CLL	Brass Bronze	-55 °C	250 °C	Keyed	14 A 18 A	Shielded	Chrome	Metal	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	6	Female Sockets Male Pins Receptacle	306	IP50	UL94 V-0	Push-Pull	Brass
LEMO ERA.3S.707.CLL	Brass Bronze	-55 °C	250 °C	Keyed	3 A 8 A	Shielded	Chrome	Metal	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	8	Female Sockets Male Pins Receptacle	707	IP50	UL94 V-0	Push-Pull	Brass
LEMO ERA.3S.250.CTA		-55 °C	250 °C								Bulkhead - Rear Side Nut			Male Pin Receptacle		IP50		Push-Pull		Solder Cup	Brass	50 Ohms	Silver	Polytetrafluoroethylene (PTFE)	Chrome	Brass	1 Connector 1 Lockwasher 1 Nut	1000	Coaxial	Solder	115A 144 165 213 RG-11A	Gold
LEMO ERA.3S.650.CTL		-55 °C	250 °C								Bulkhead - Rear Side Nut			Female Socket Receptacle		IP50		Push-Pull		Solder Cup	Brass	50 Ohms	Silver	Polytetrafluoroethylene (PTFE)	Chrome	Brass	1 Connector 1 Lockwasher 1 Nut	1000	Triaxial	Solder	8232A 9222 9267 Belden 8215	Gold	1
LEMO ERA.3S.410.CTL	Bronze	-55 °C	250 °C	Keyed	7 A	Shielded	Chrome	Metal	Polytetrafluoroethylene (PTFE)	Silver	Bulkhead - Rear Side Nut	Gold	1	Receptacle Female Sockets	410	IP50		Push-Pull	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.92
		10	$ 55.90
		25	$ 53.75
		50	$ 51.96
		100	$ 49.09

Description

General part information

ERA.3S Series

1 Position Circular Connector Receptacle, Female Sockets Solder Cup
