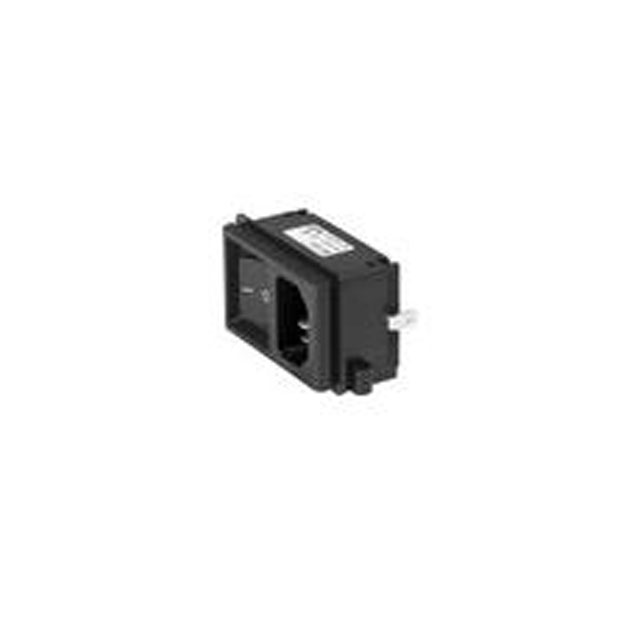

KP01.1113.11

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KP01.1113.11

Accomodates a Fuse	False
Approval Agency	VDE, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness	3 mm
Panel Thickness	0.118 in
Switch Features	Switch On-Off
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Mounting Type	Accomodates a Fuse	Panel Thickness	Panel Thickness	Filter Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Ingress Protection	Features	Approval Agency	Connector Style	Termination	Panel Cutout Dimensions	Connector Type	Switch Features
SCHURTER Inc. KP01.1113.11	10 A	Panel Mount Snap-In Through Hole Right Angle		3 mm	0.118 in	Unfiltered - Commercial	UL94 V-0	250 VAC	IP40	Terminating Cover	CCC cURus VDE	IEC 320-C14	Solder	Variable Size	Receptacle Male Blades - Module	Switch On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.48

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
